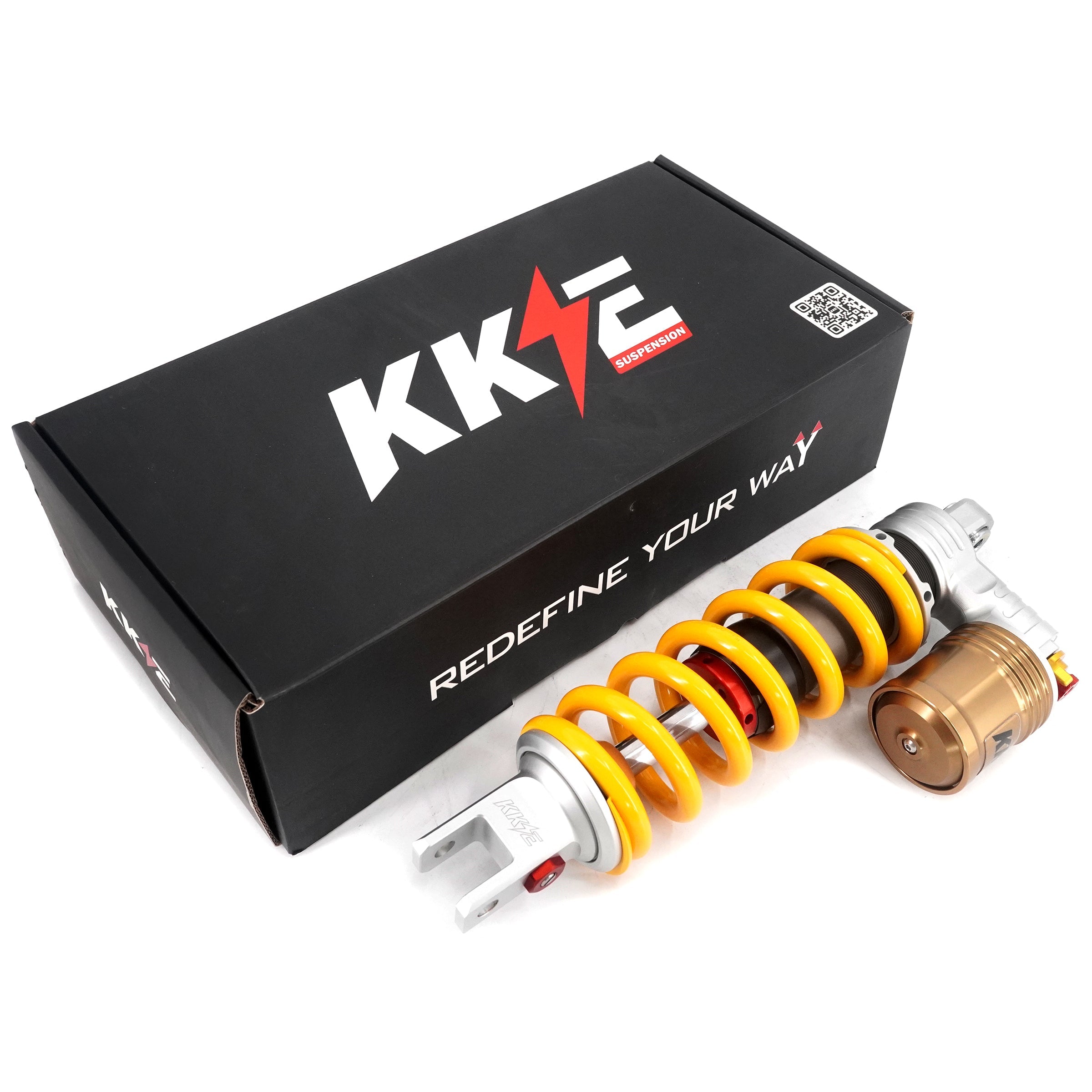

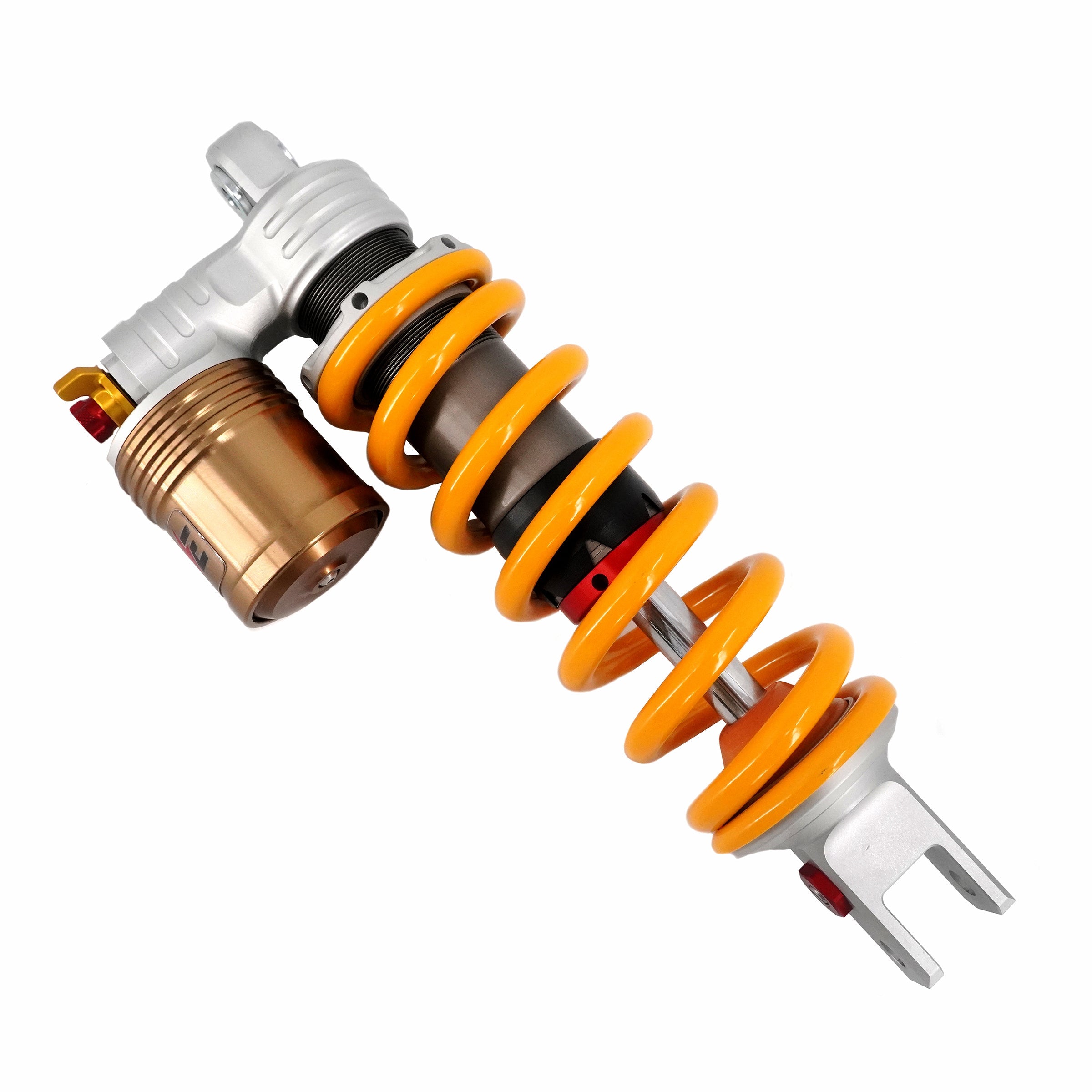

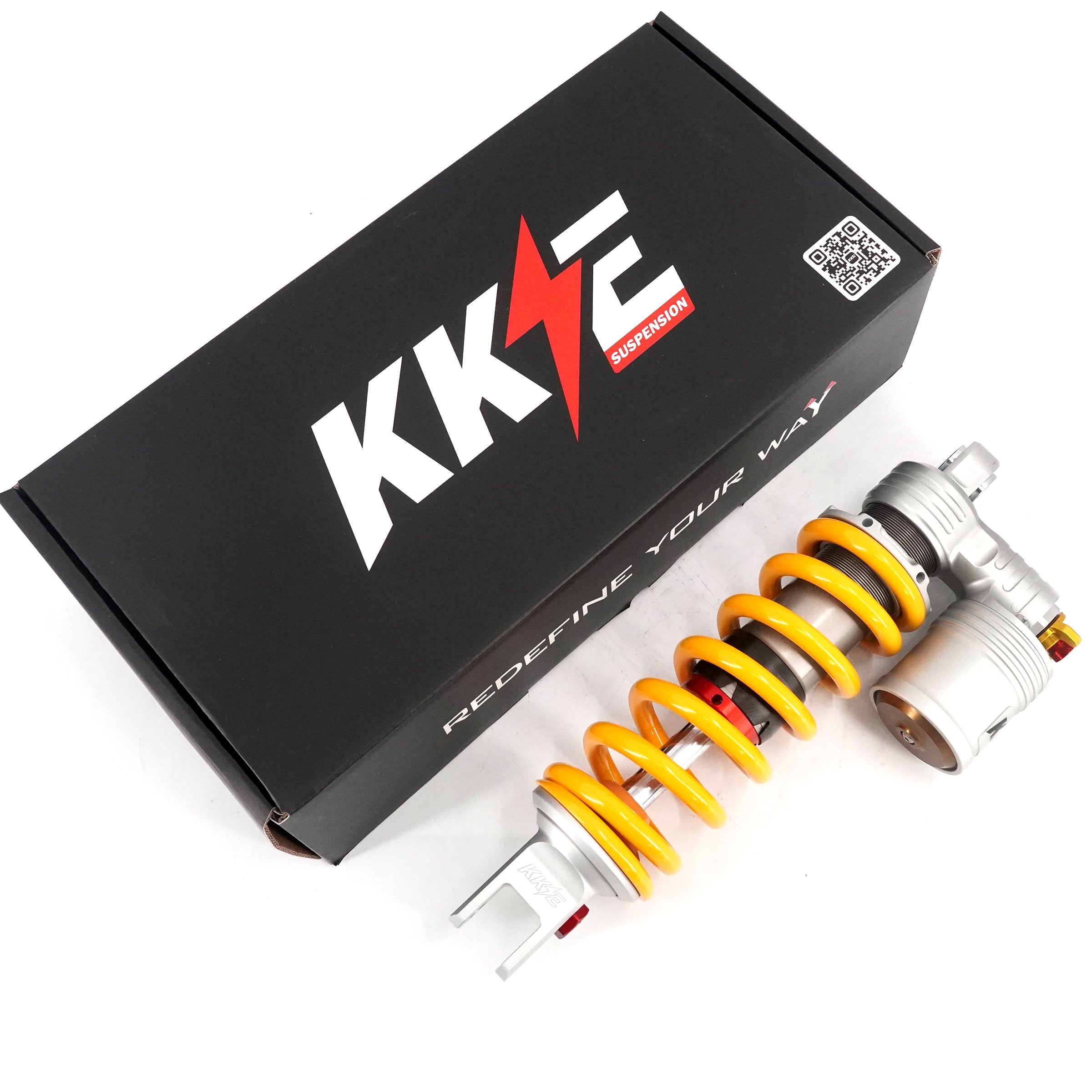

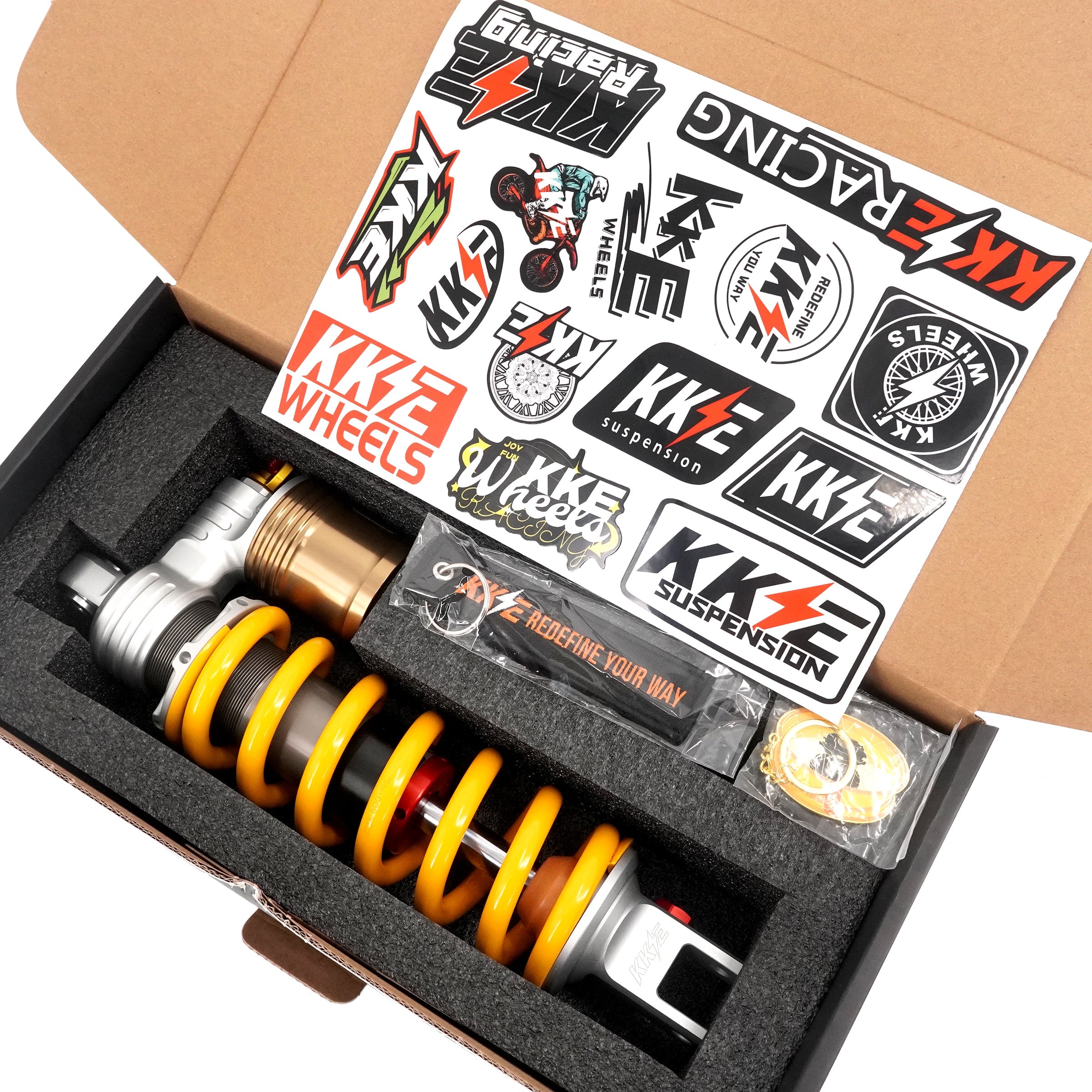

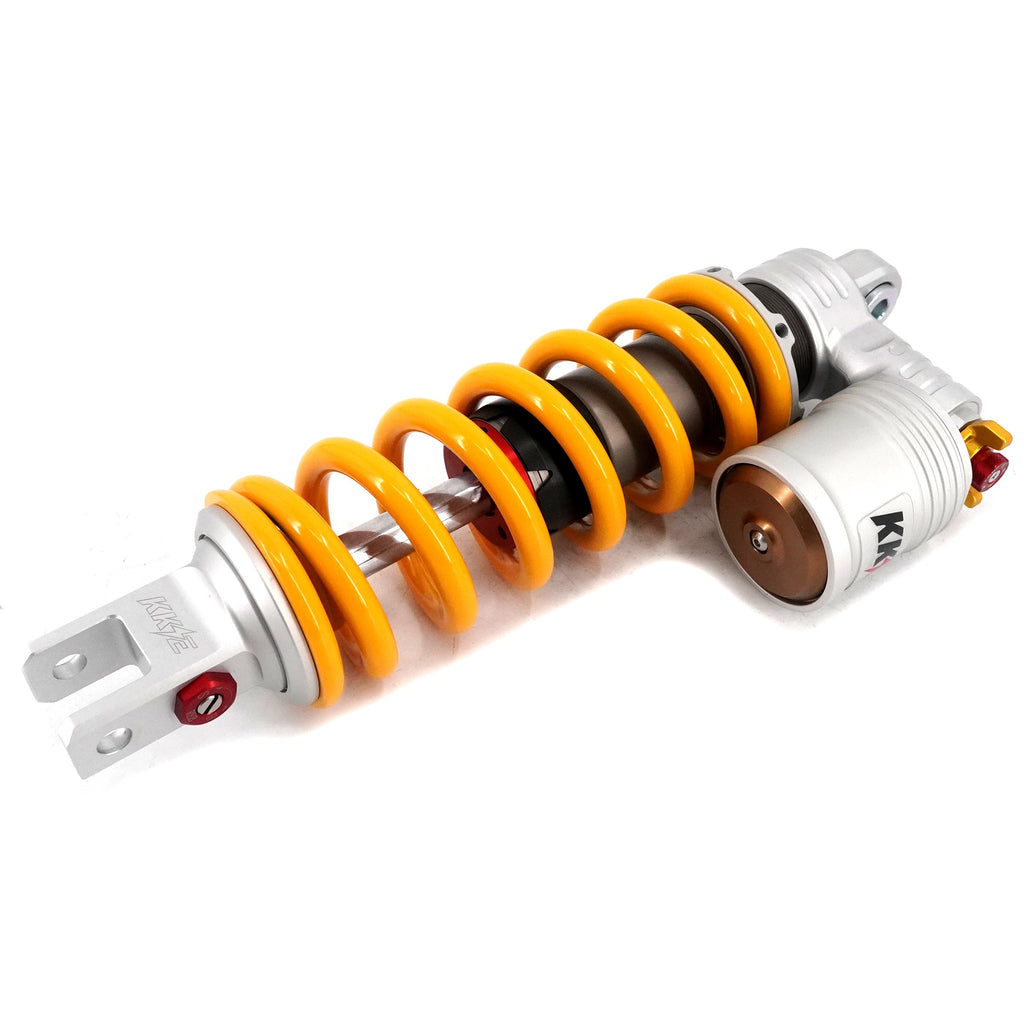

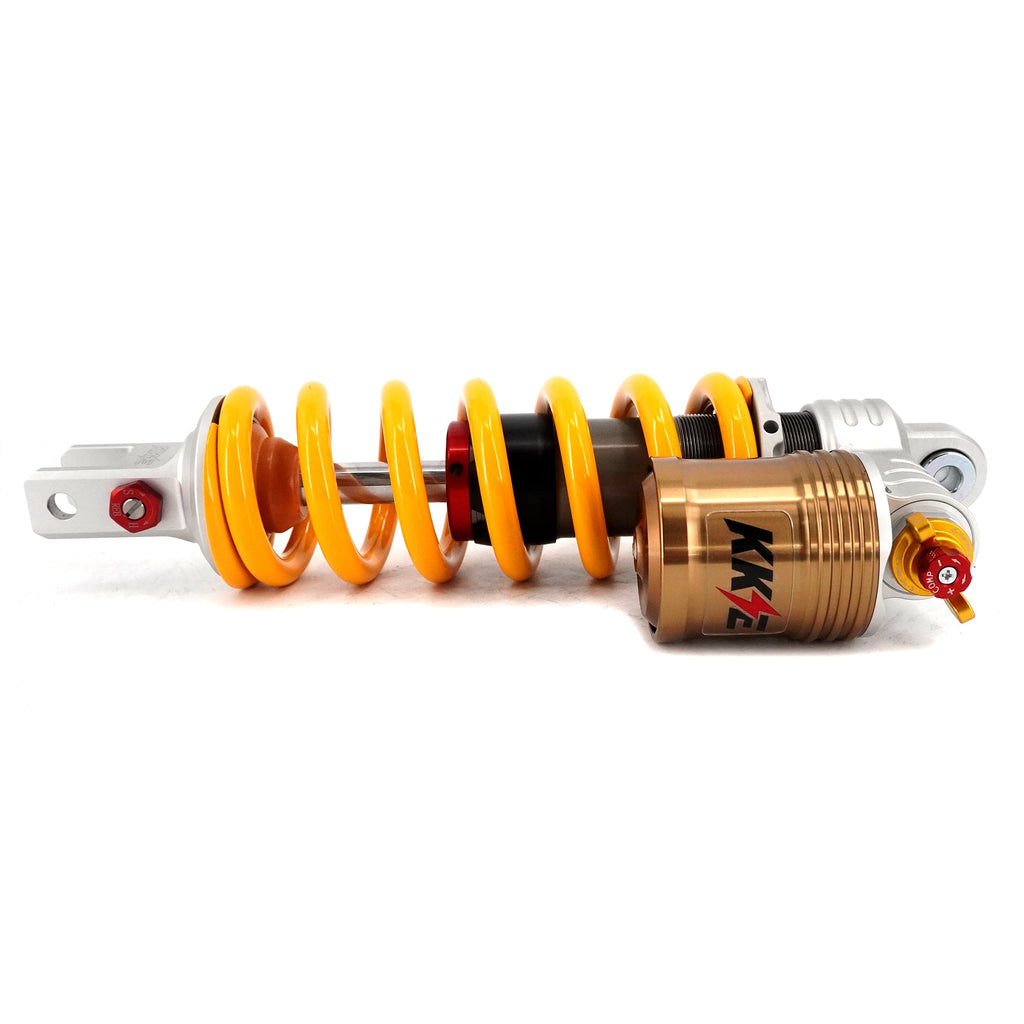

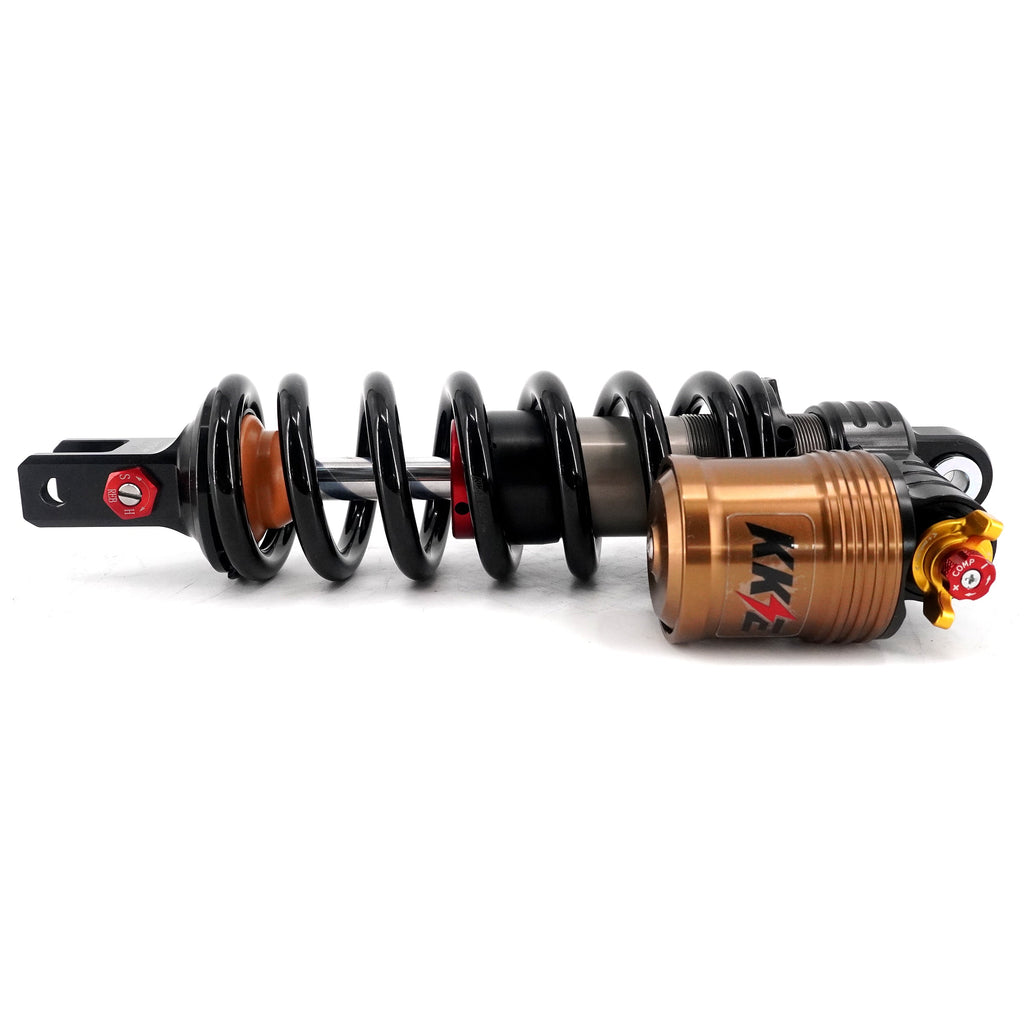

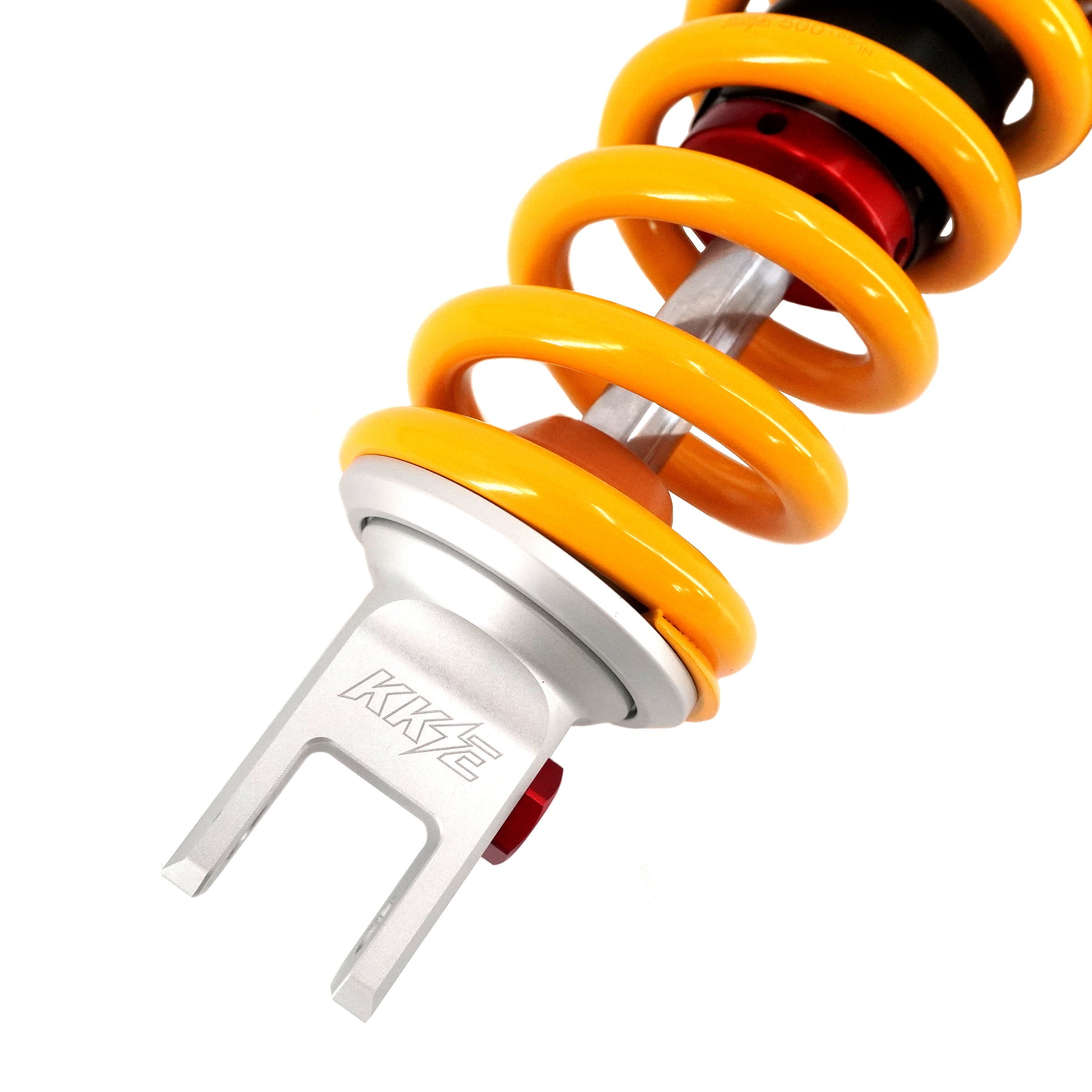

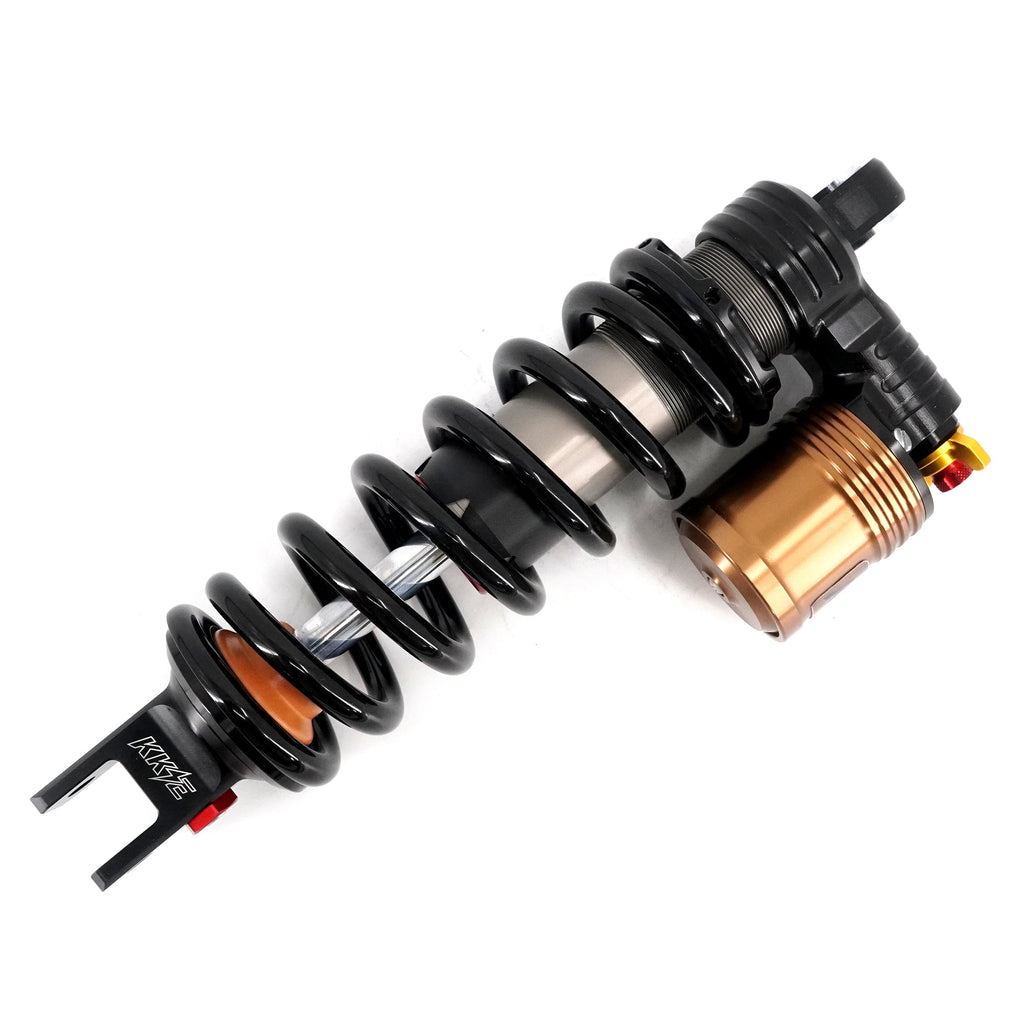

KKE Rear Shock Upgrade for Surron Ultra Bee

The KKE Rear Shock Upgrade is a full-feature rear suspension system designed specifically for the 2023–2025 Surron Ultra Bee. Engineered for performance, adjustability, and durability, this shock delivers better damping control, increased support, and smoother performance across all terrain types—from singletrack to urban freeride to MX-style jumps.

With a 40mm large-bore cylinder, high- and low-speed compression adjusters, and a professionally tuned oil channel layout, this rear shock is built to meet the demands of aggressive riding while offering fine-tuned control and comfort. The spring preload is set at 500 lbs, ideal for most riders in the 65–85 kg weight range, and capable of handling 90% of terrain scenarios via clicker adjustments.

• Total Length: 320mm

• Top Mounting Size: 10 x 24

• Bottom Fork Size: 10 x 24.2

• Upper Mount: AL6061-T6, matte silver or black, full CNC machined

• Lock Nut: AL6061-T6, matte silver or black, full CNC machined

• Spring Guide Bushing: POM, black (protects oil cylinder)

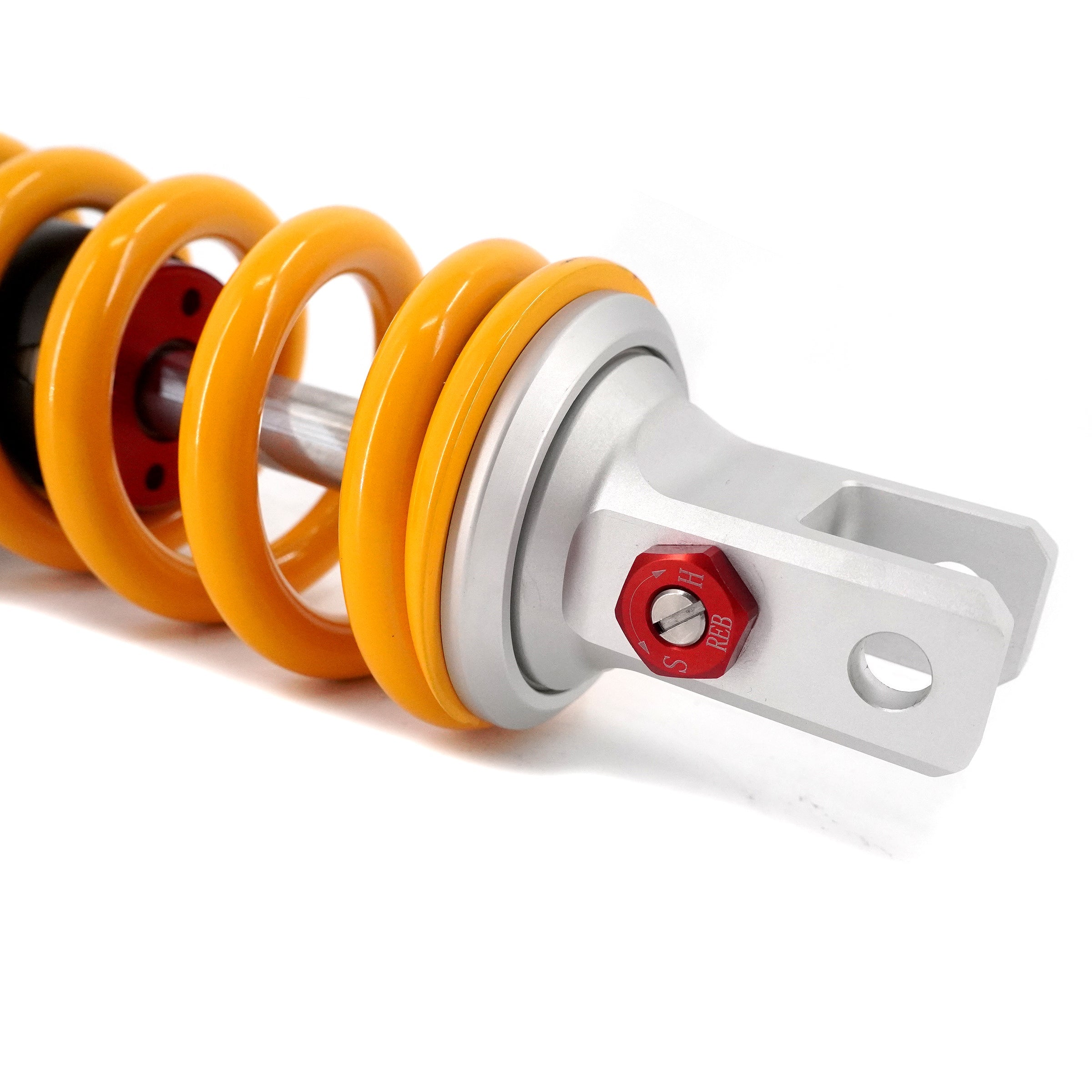

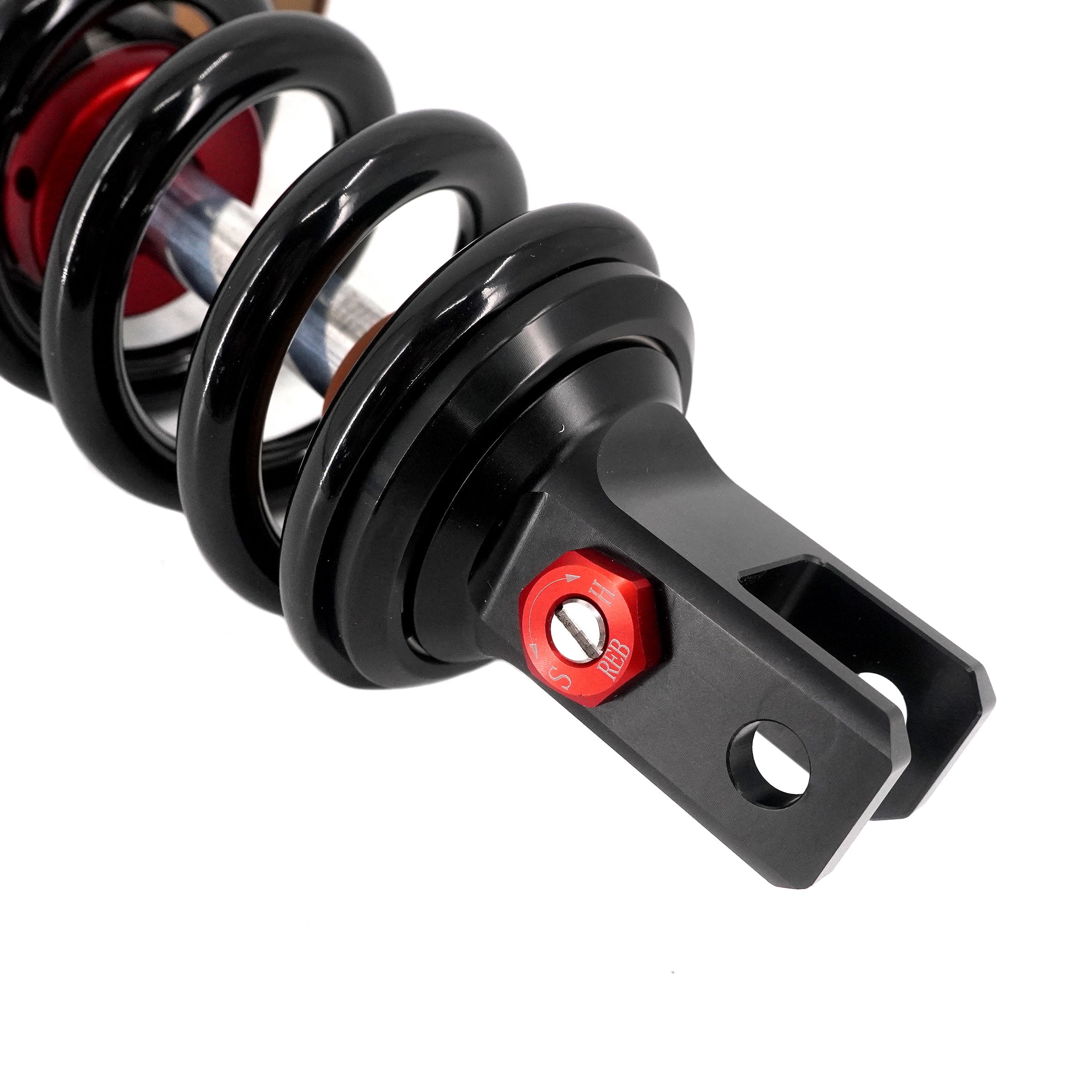

• Lower Fork: AL6061-T6, matte silver or black, full CNC machined

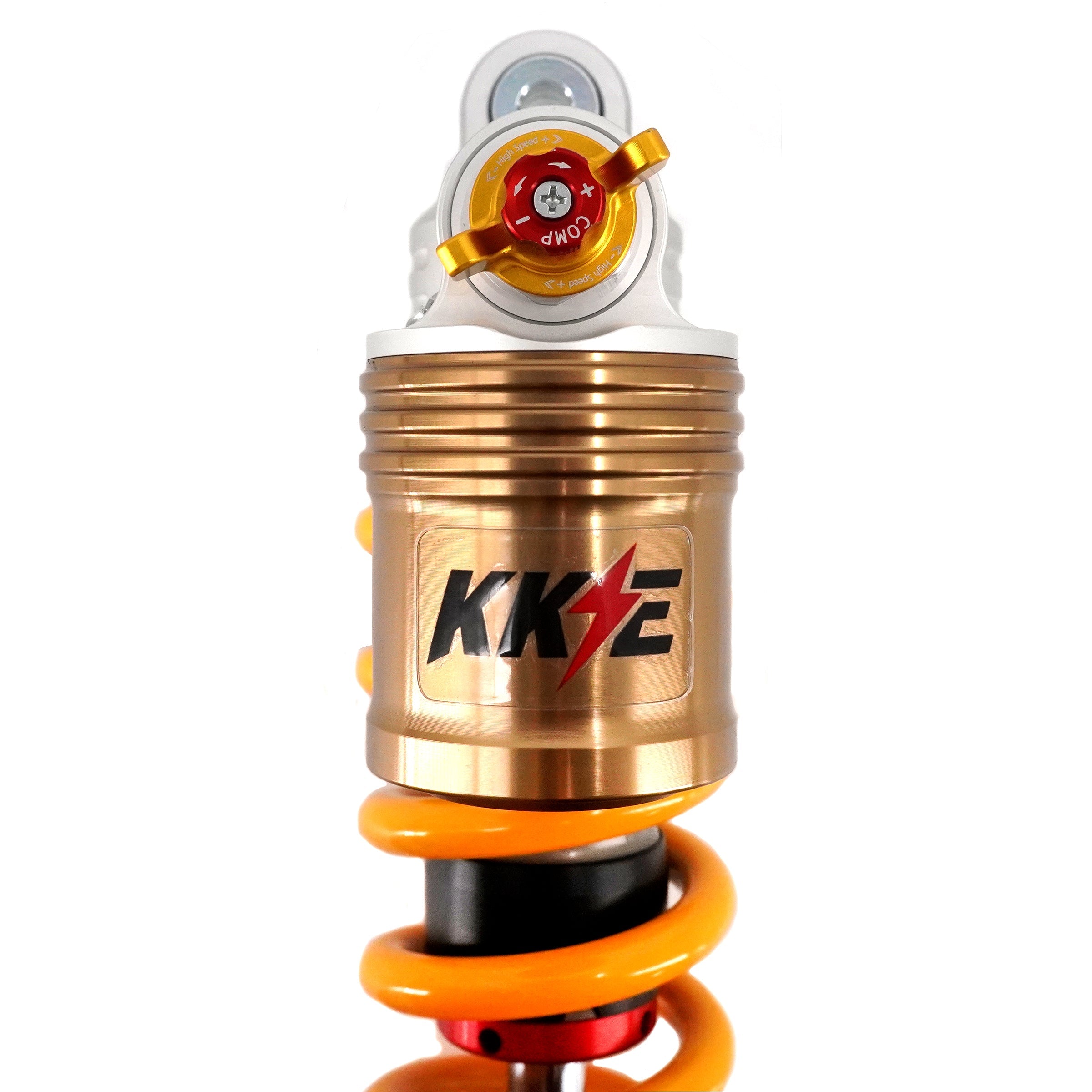

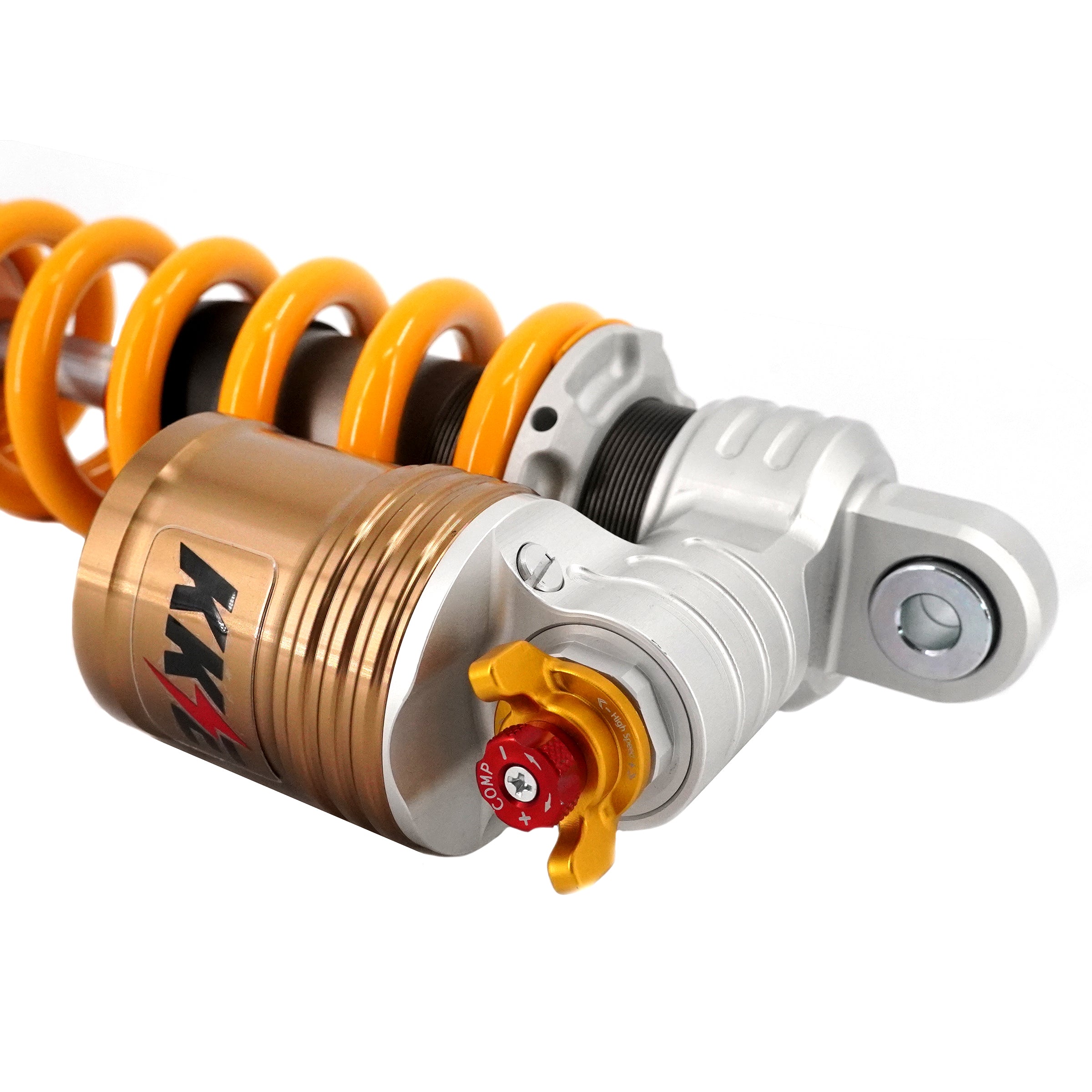

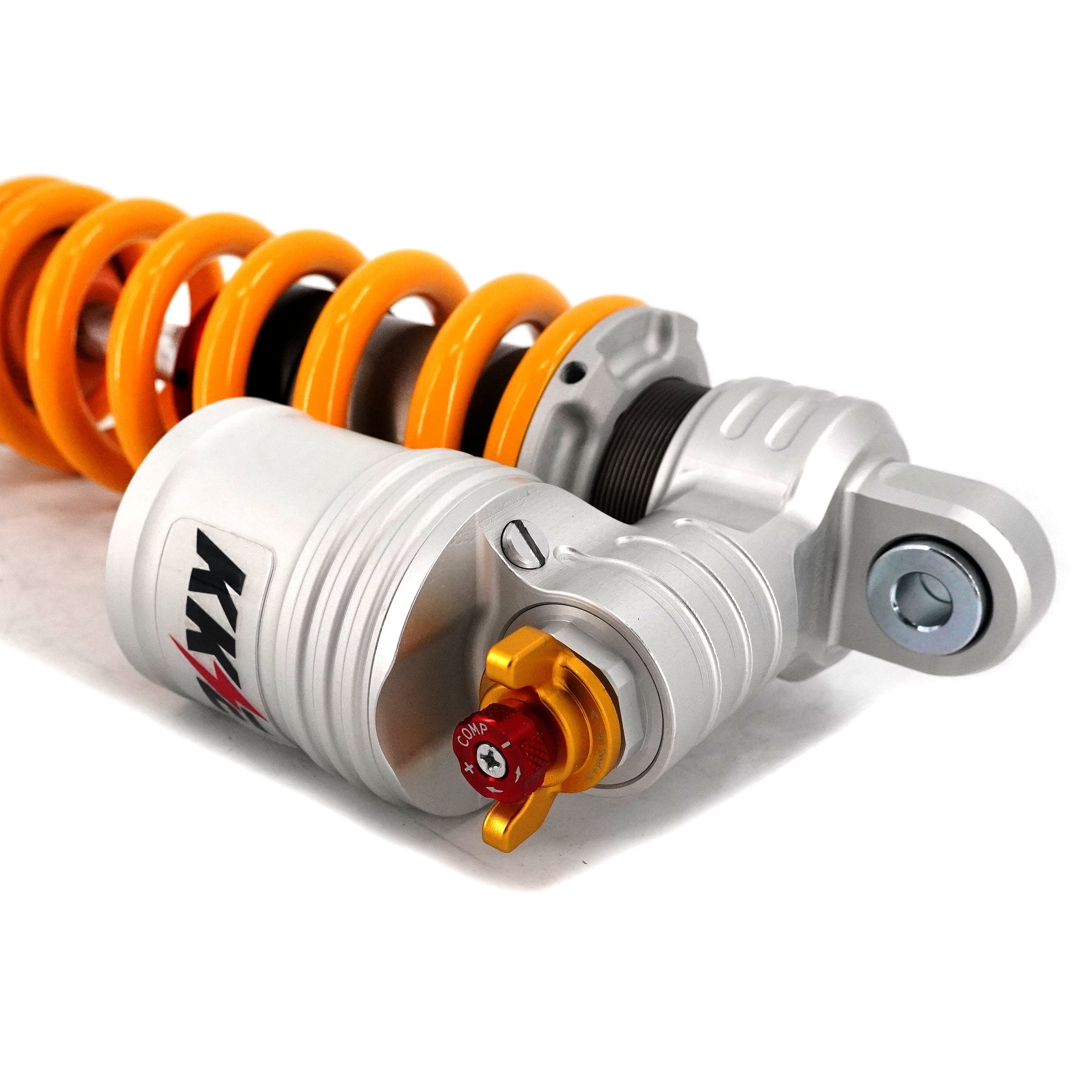

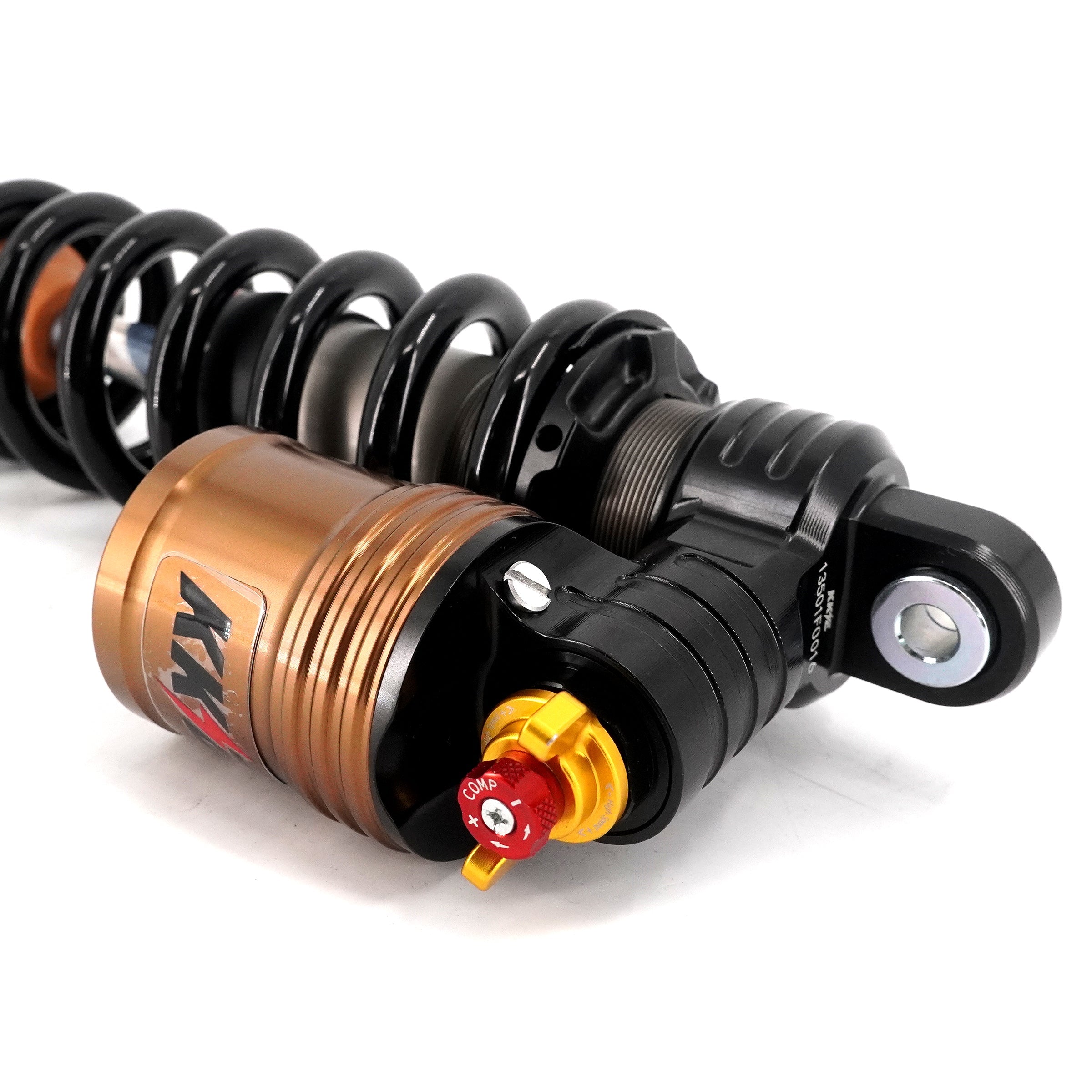

• Compression High-Speed Adjuster: AL6061-T6, gold anodized, CNC machined

• Compression Low-Speed Adjuster: AL6061-T6, red anodized, CNC machined

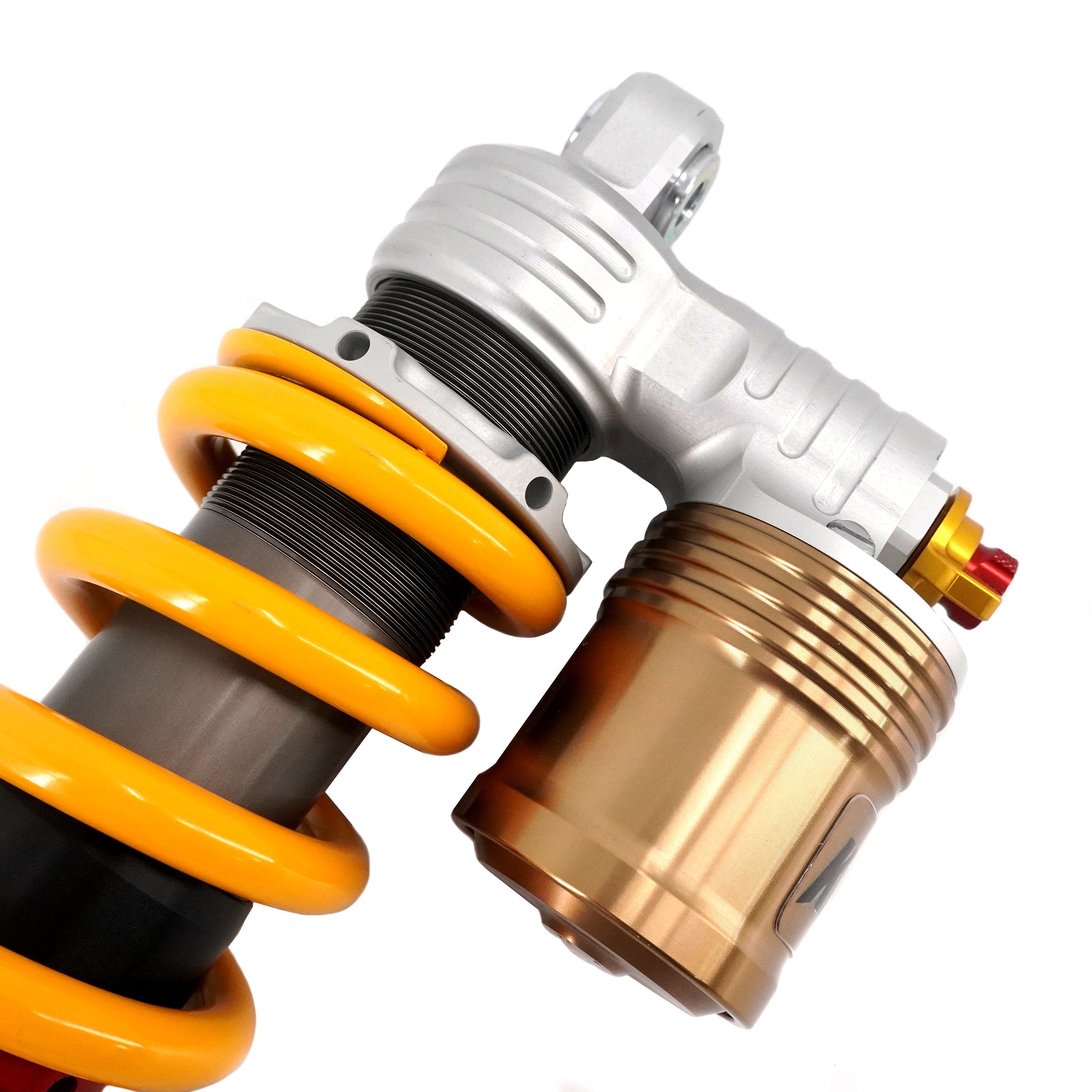

• Air Chamber: AL6061-T6, matte silver or champagne gold, precision-drawn tube

• Oil Chamber: AL7075-T6, raw aluminum with precision honing

• Piston Rod: 40Cr steel, nickel-plated then chrome-plated for high durability

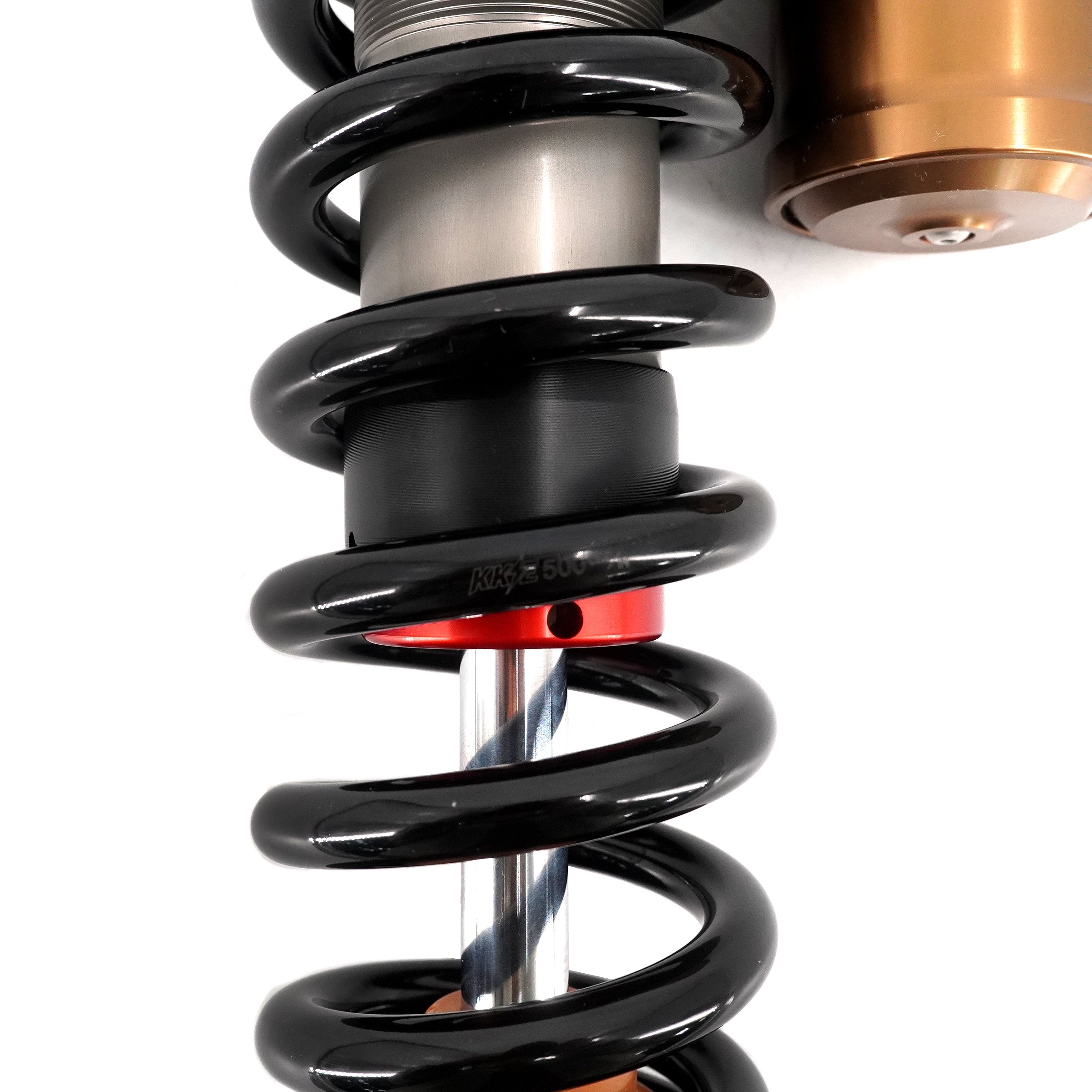

• Shock Spring: 55CrSi-C-GB steel, available in yellow, white, or black

• Shock Pad: High-performance polyurethane (yellow) with special structure for added support

• Large 40mm Cylinder Bore: Allows more tunable damping range and smoother stroke

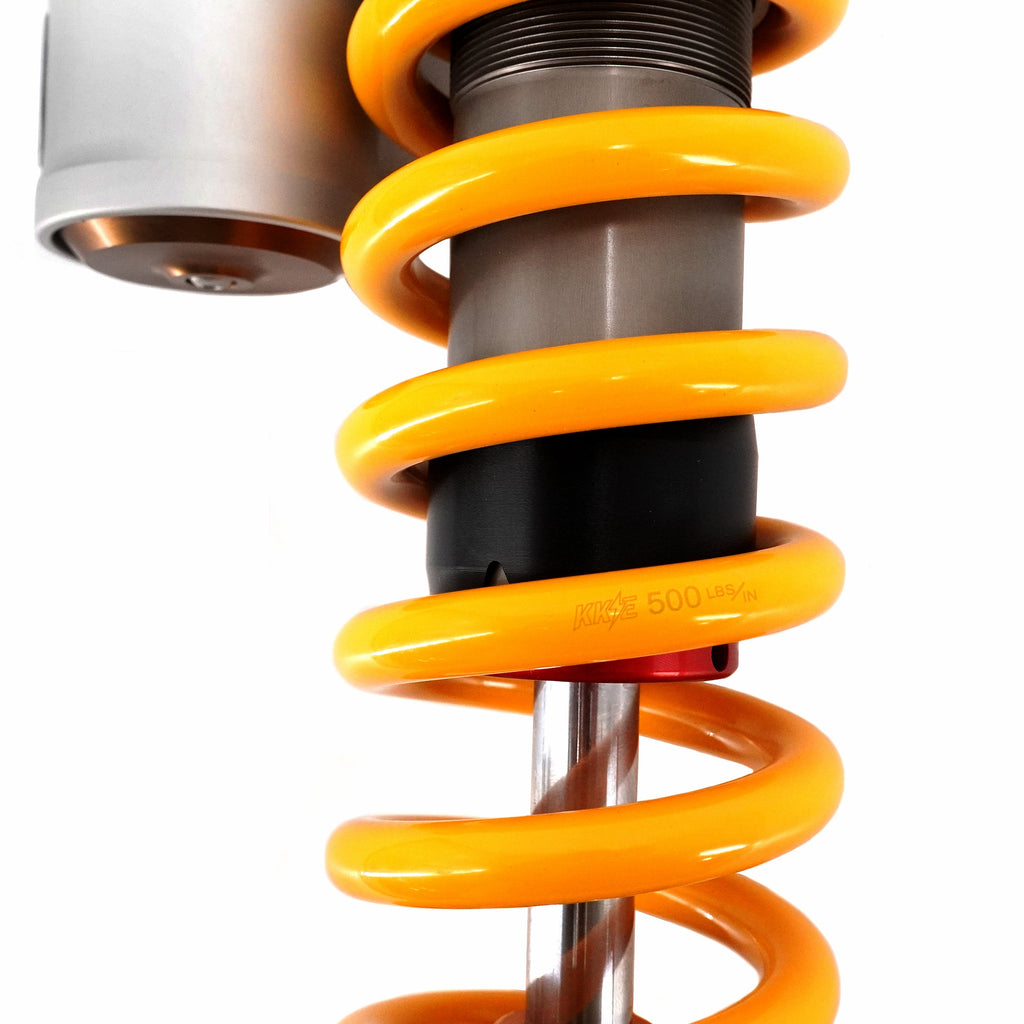

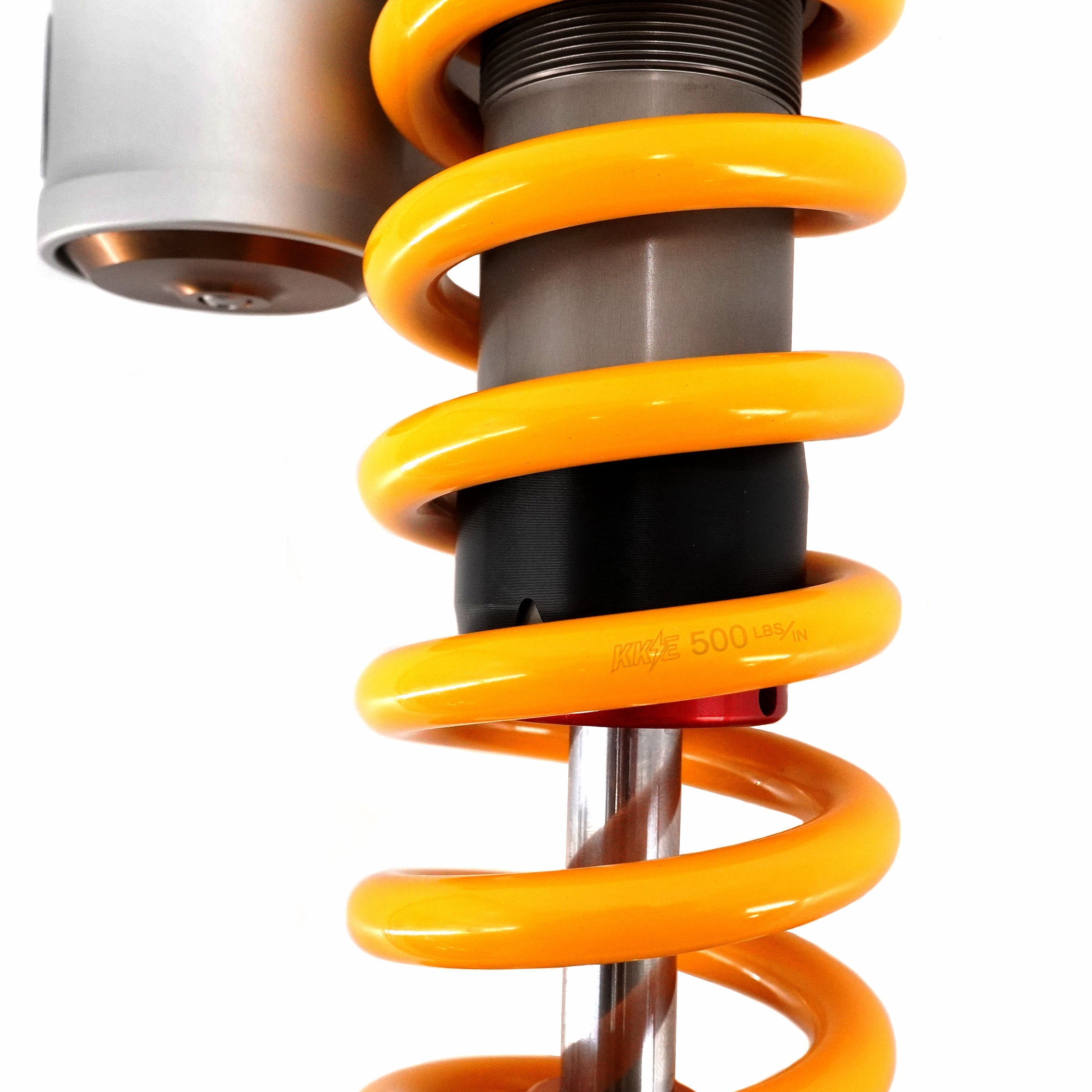

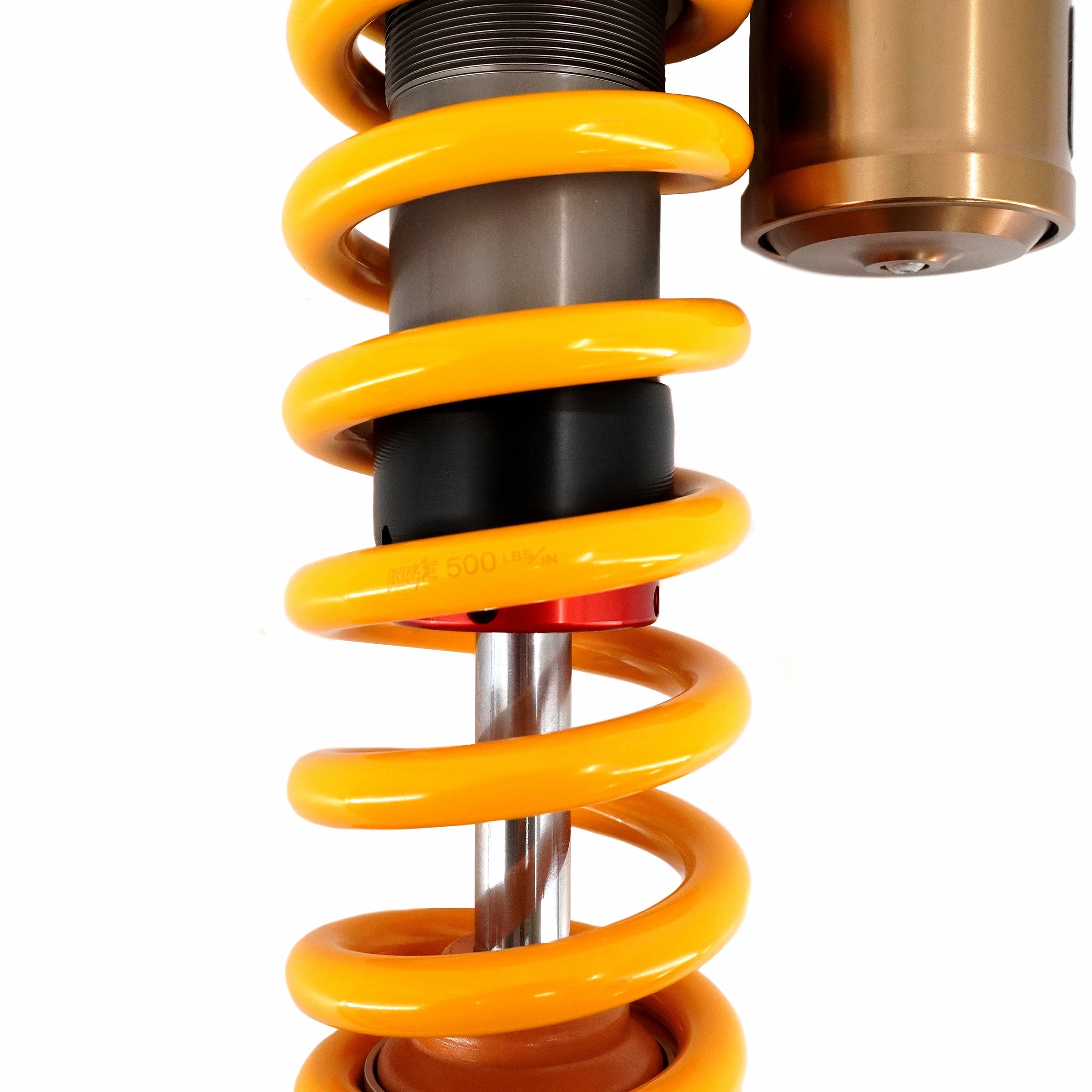

• 500 lbs Spring Rate: Offers significantly stronger load support than stock

• 16mm Piston Rod: Balances internal rebound and compression volume for optimal damping

• High-Pressure Compression Adjuster: Widens the compression tuning range for better setup flexibility

• Hydraulic Bottom-Out Cushioning: Internal upgrade to all-metal parts (no rubber components) improves reliability

• Precision Oil Channels: Professionally designed for maximized oil flow and damping consistency

• New Shock Pad Design: Structured for increased bottom-out resistance and support

• Premium Shock Oil: High-performance oil ensures stable damping and reduced fade at high temps

• Recommended Rider Weight: 65–85 kg with the included 500 lbs spring

• Tuning Range: Handles up to 90% of typical road and off-road conditions using clicker adjustments

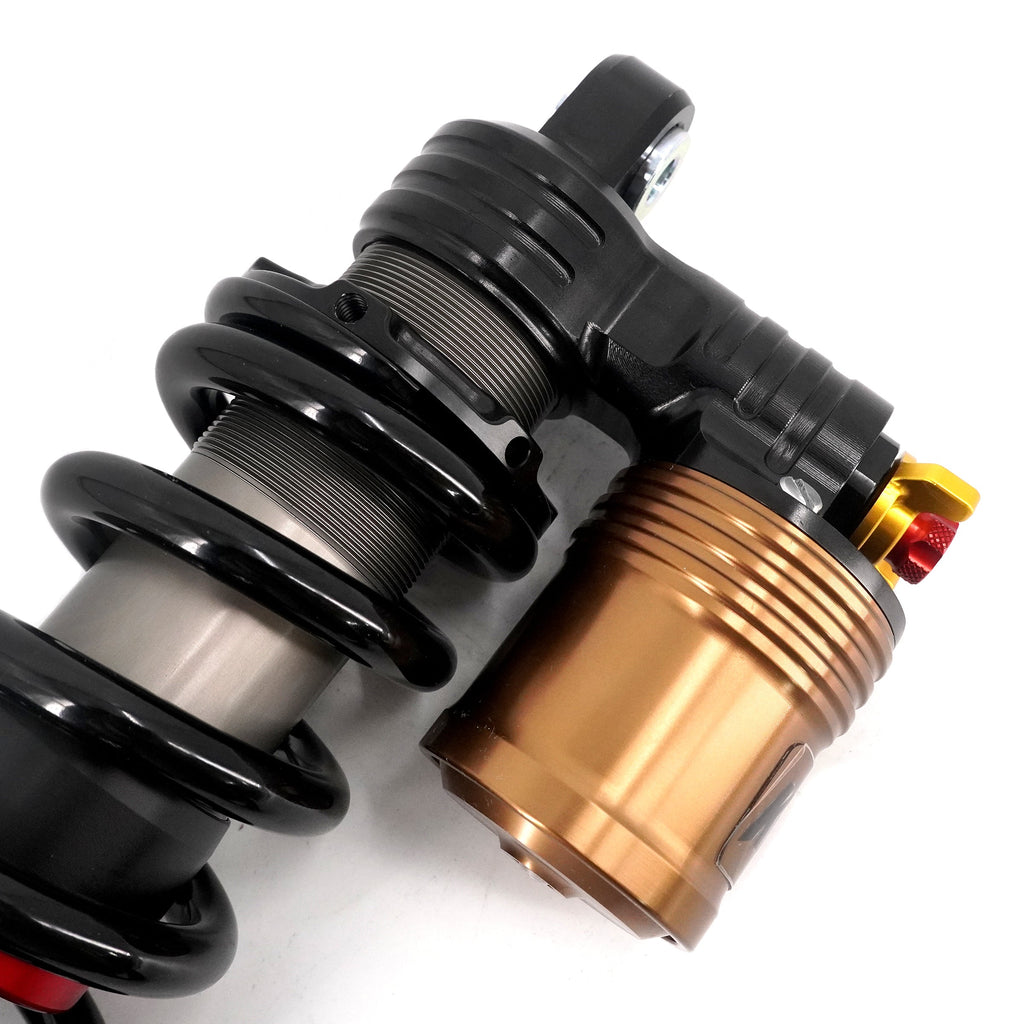

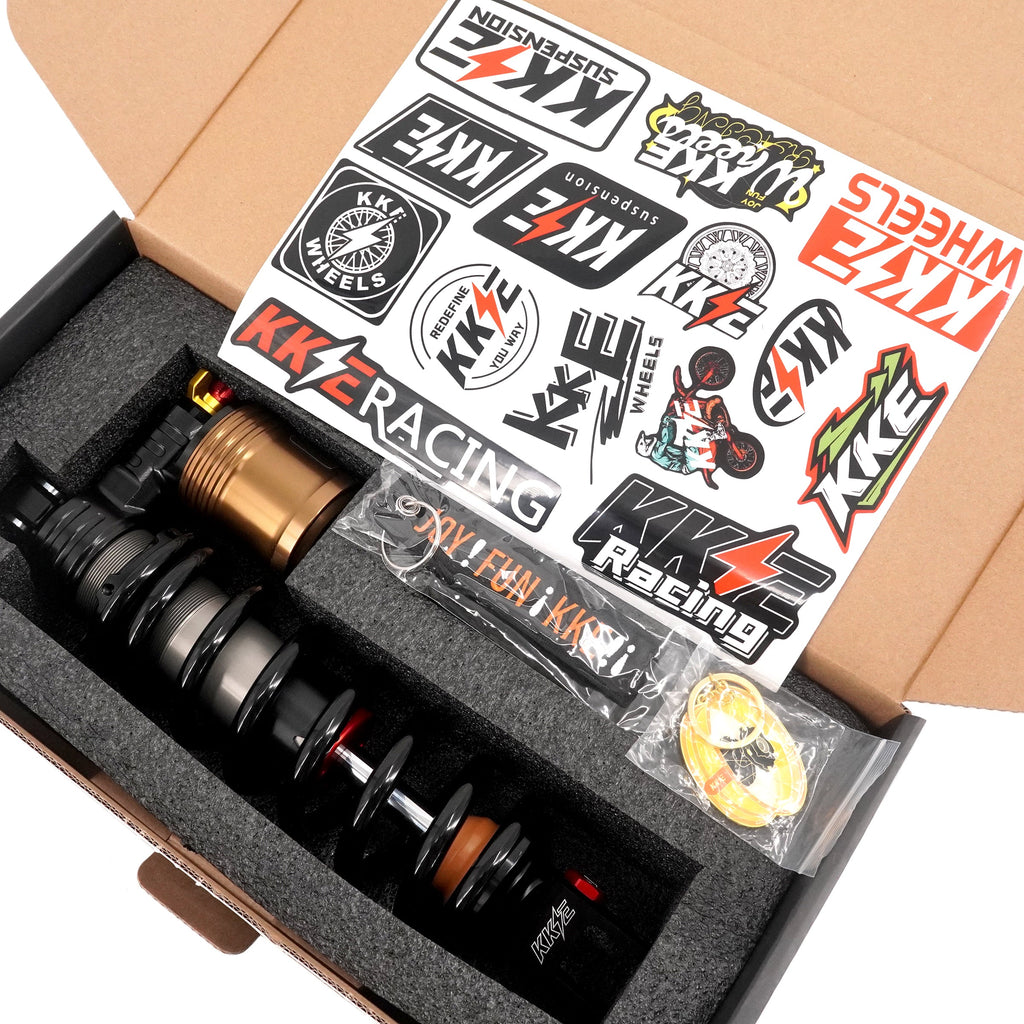

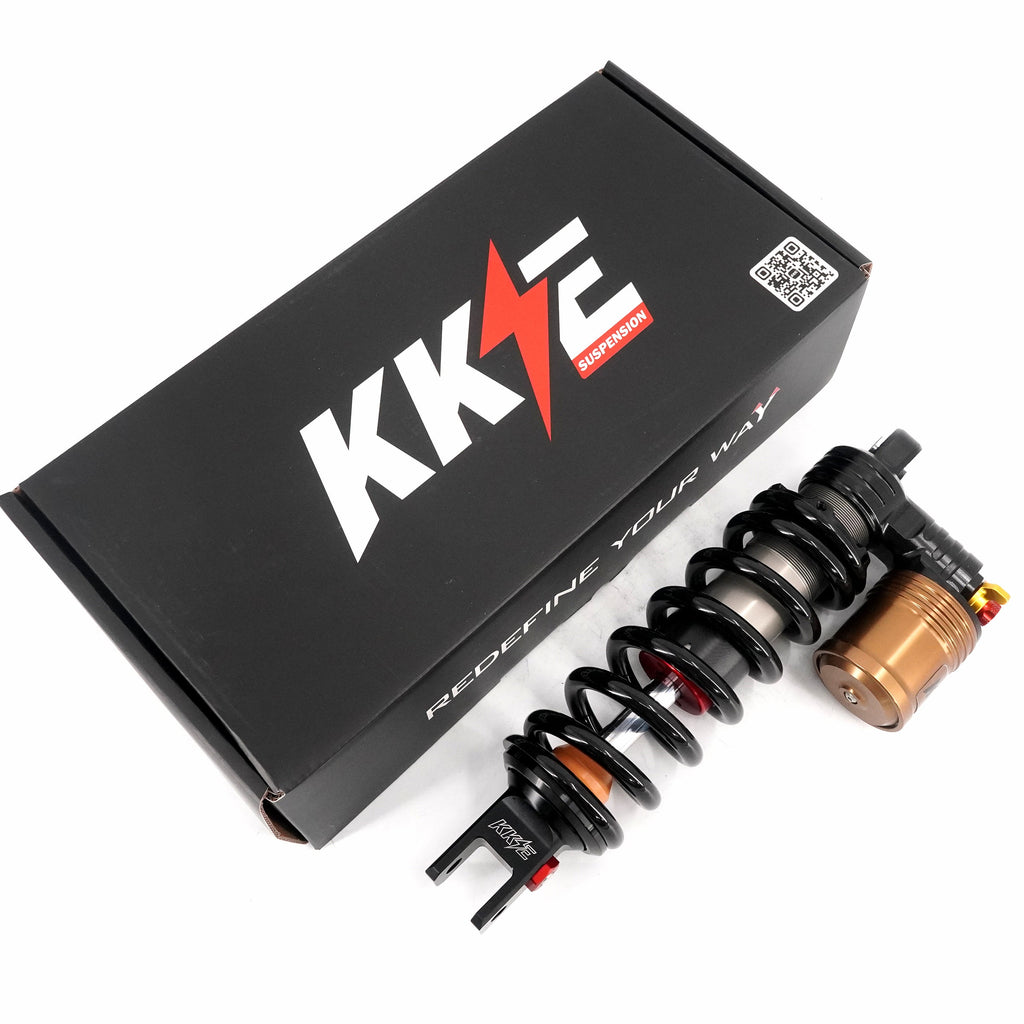

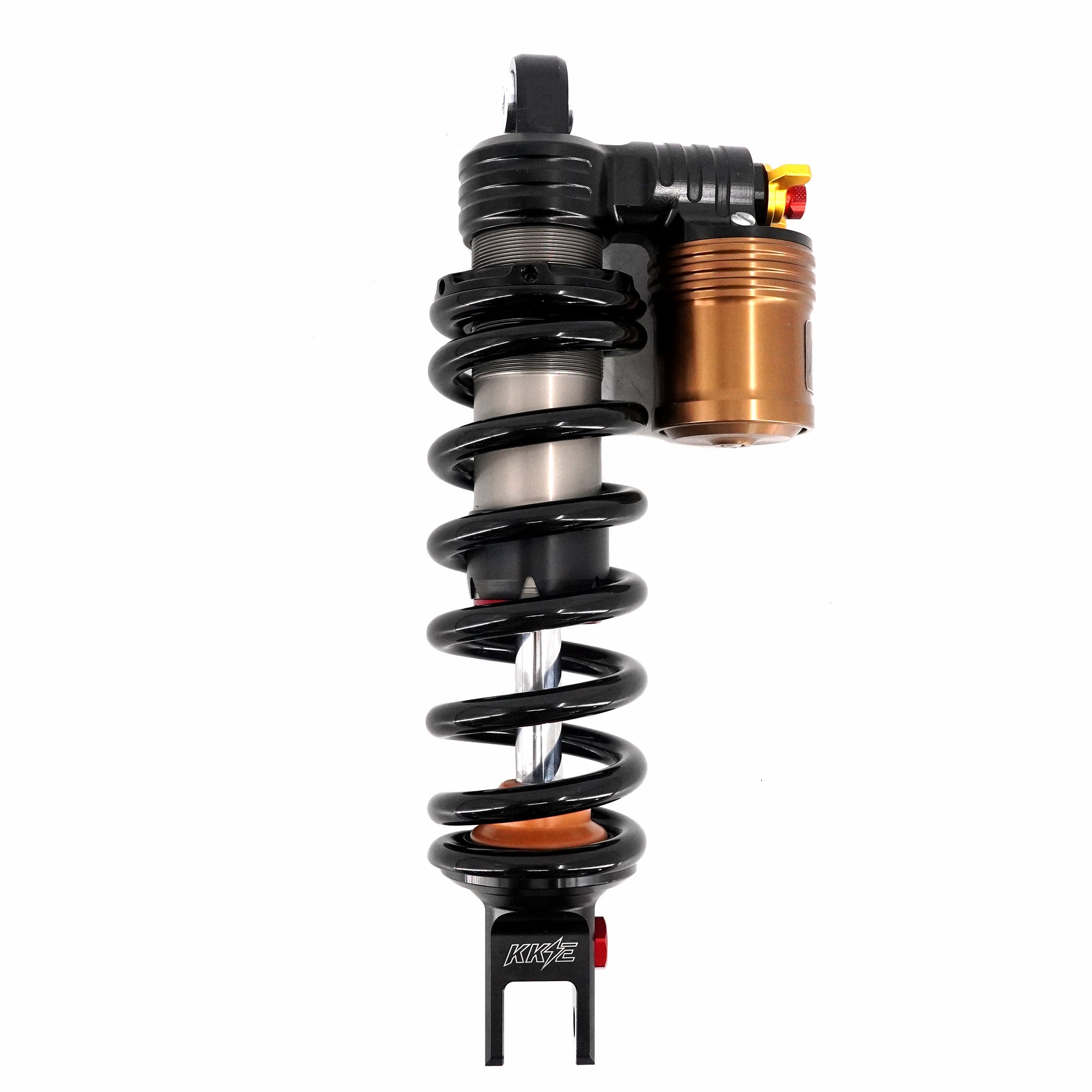

• Black Shock Spring / Bronze Air Chamber

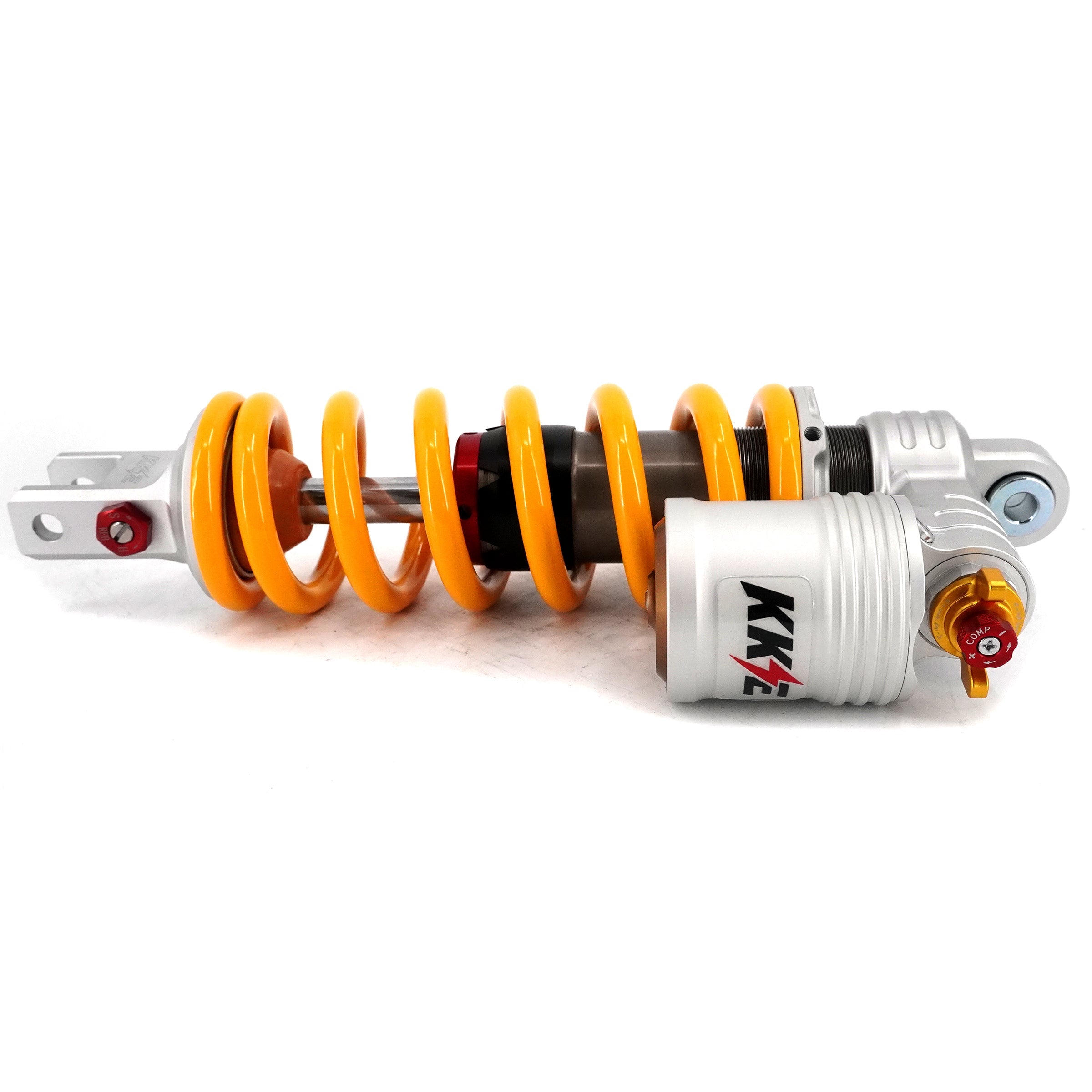

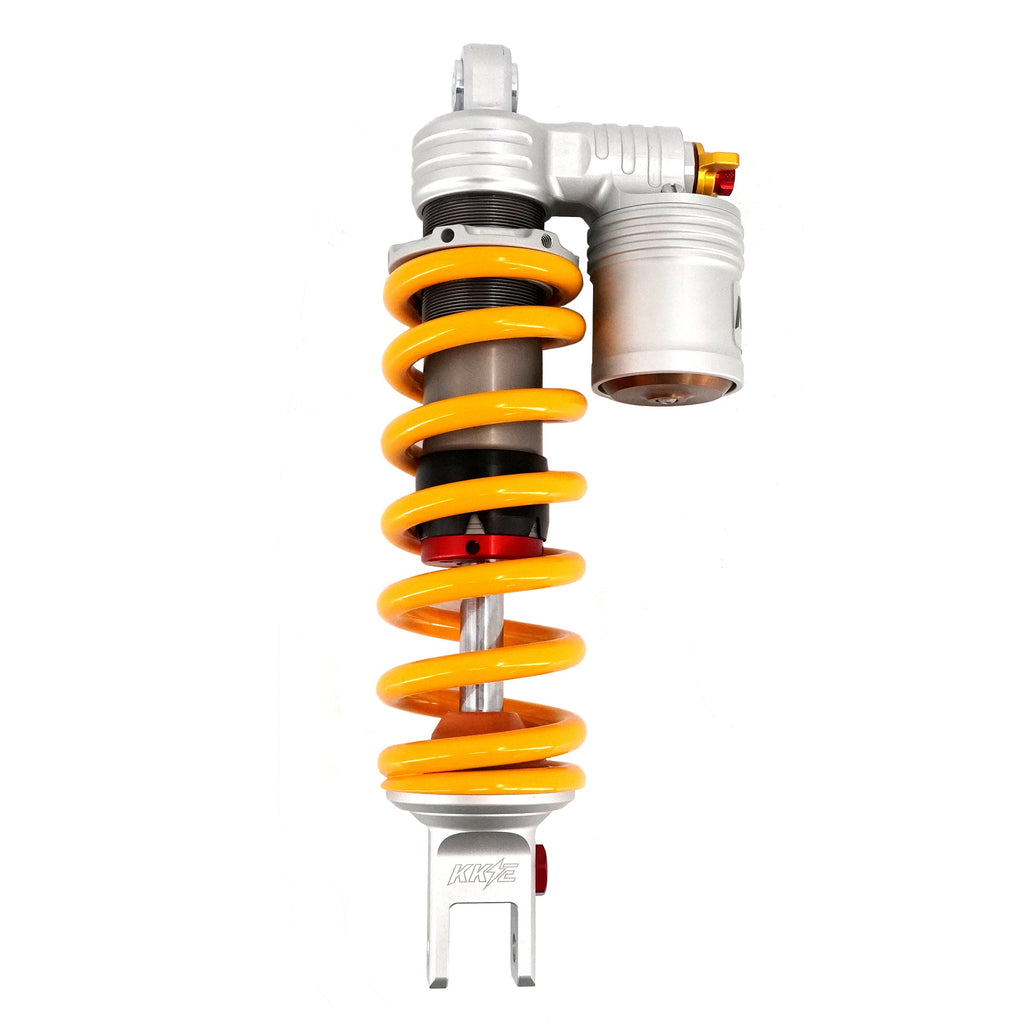

• Gold Shock Spring / Silver Air Chamber

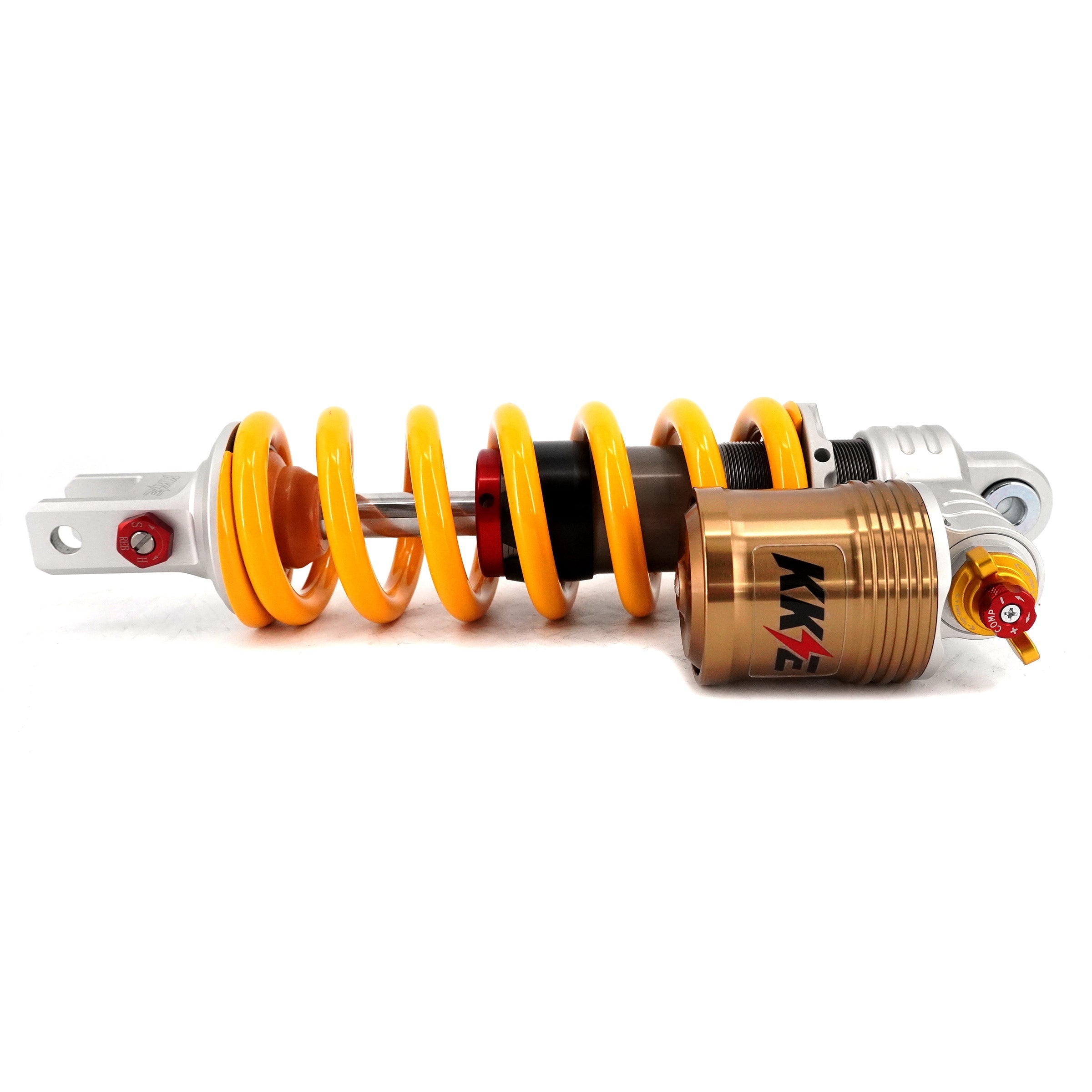

• Gold Shock Spring / Bronze Air Chamber

Fitment

• 2023–2025 Surron Ultra Bee
