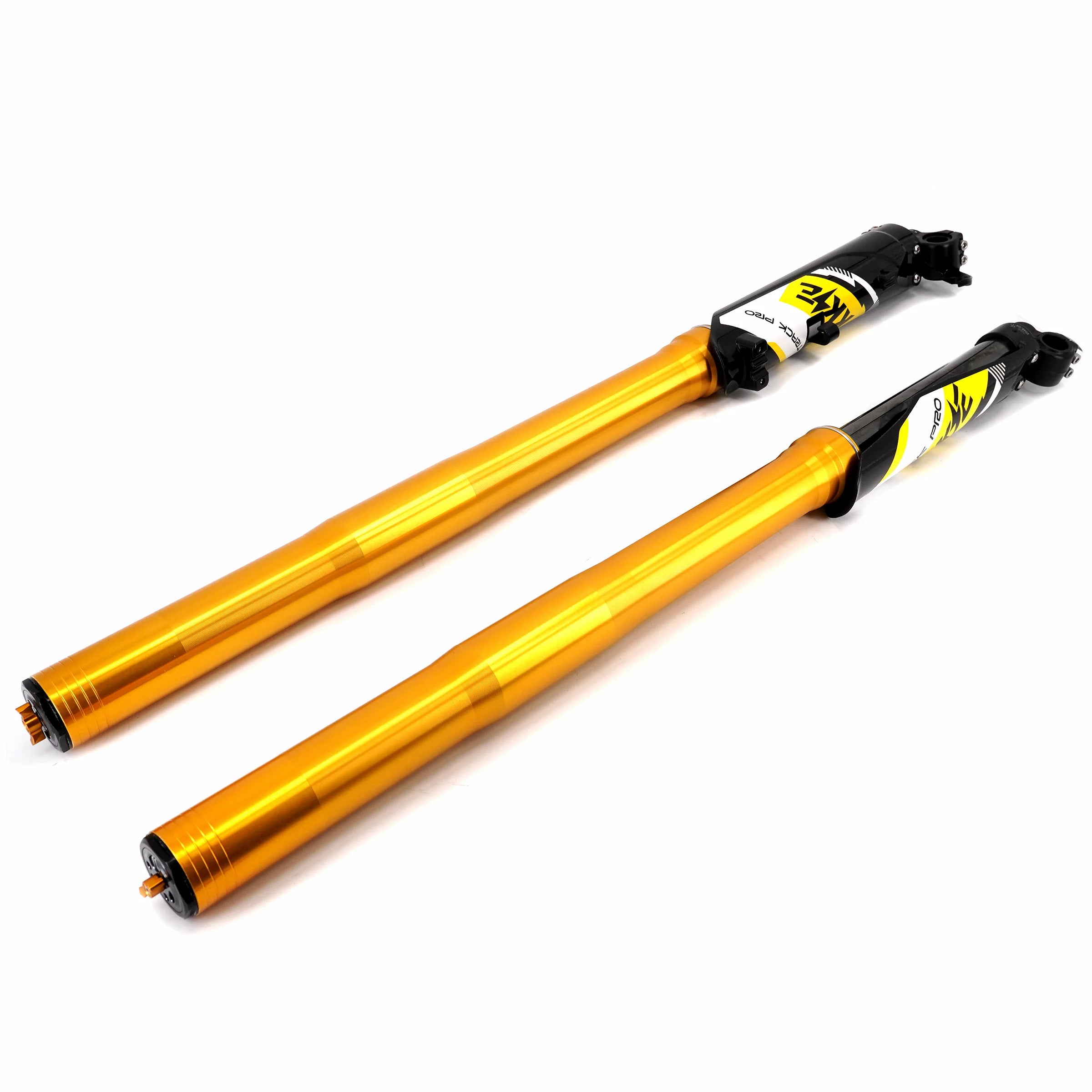

Upgrade your Surron Ultra Bee’s front-end performance with the KKE 6.0 Closed Cartridge Fork. This high-performance 37mm front suspension system offers long travel, premium construction, and tunable damping to handle aggressive riding across varied terrain. Built with an internal closed cartridge design and SKF oil seals, the KKE 6.0 delivers stable, consistent suspension feel with excellent protection against contamination.
With 235mm of travel and a dual-chamber layout, this fork is tuned for comfort and control—whether you're tackling trails, jumps, or race conditions.
Key Specs:
-
850mm overall length
-
6.3kg weight (without triple clamp)
-
235mm of suspension travel
-
37mm aluminum stanchions
-
Axle size: 20x24mm
-
Clamping size: 46mm (upper) / 50mm (lower)
-
Spring rate: 22 lbs per side (total 44 lbs)
-
Recommended rider weight: 70–85kg
-
Damping: Symmetrical closed cartridge with floating piston
-

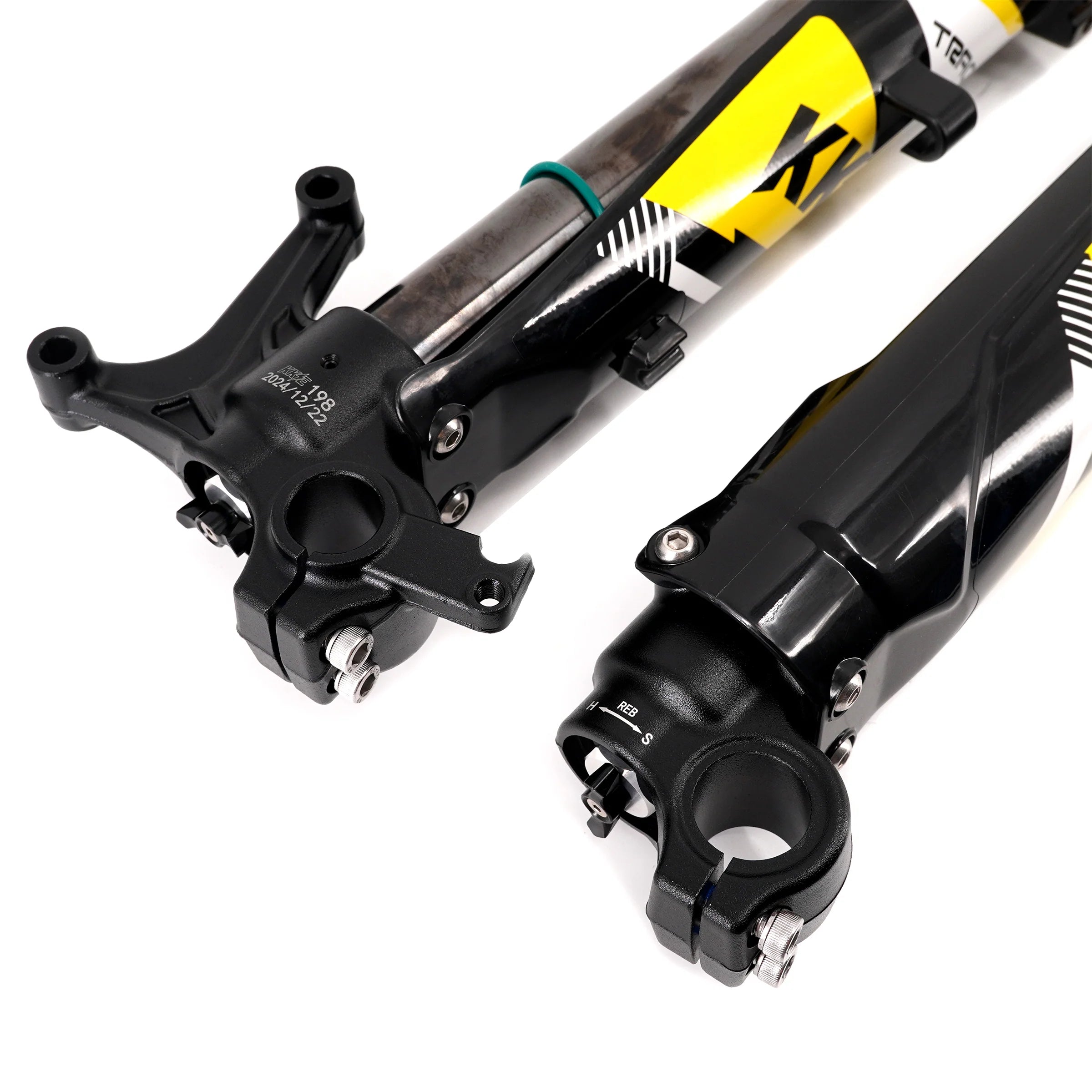

Compression adjust (top), rebound adjust (bottom)
-

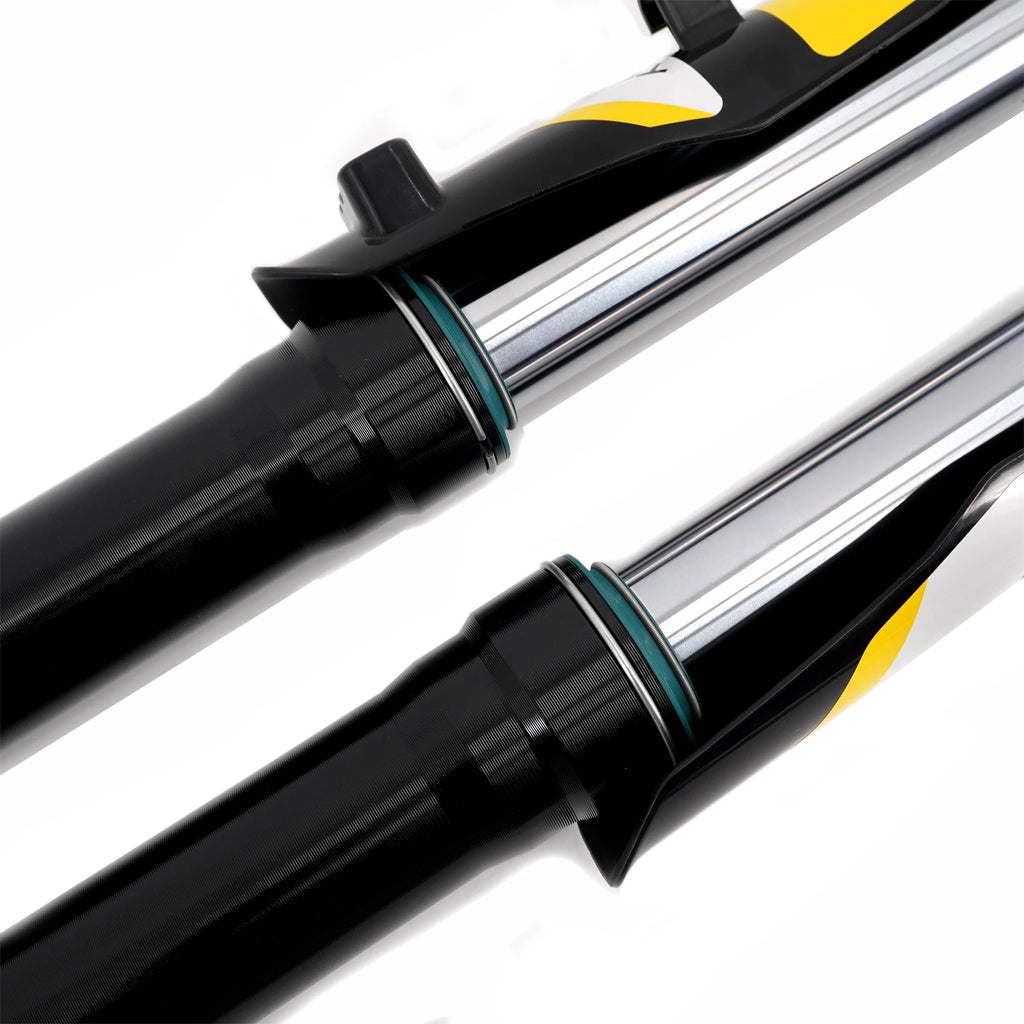

Seals: SKF oil seals
-
Color: Black anodized
Construction:
-
Outer Tubes: 7050-T6 anodized aluminum for strength and corrosion resistance
-
Dropouts: 6061-T6 anodized aluminum for lightweight durability
-
High-Performance Sealing: Closed cartridge design with SKF seals keeps oil clean and damping consistent
Performance Features:
-
Extended travel for improved impact absorption and bottom-out resistance
-
External compression and rebound adjusters for fine-tuning
-
Symmetrical damping for balanced control and precision handling
-
Dual-chamber design for enhanced heat resistance and damping performance
Maintenance Intervals:
-
Inspect and clean: every 50 hours
-
Full service (oil, seals, inspection): every 200 hours or annually
Recommended Compression Clicks (From Manufacturer):
-
0–6 clicks: General trail and street
-
6–12 clicks: Track and aggressive trail
-
12–18 clicks: Jumps and big hits
Note:
This is for fork tubes only. Designed to be used with OEM Surron Ultra Bee triple clamp. Bolt on design.
