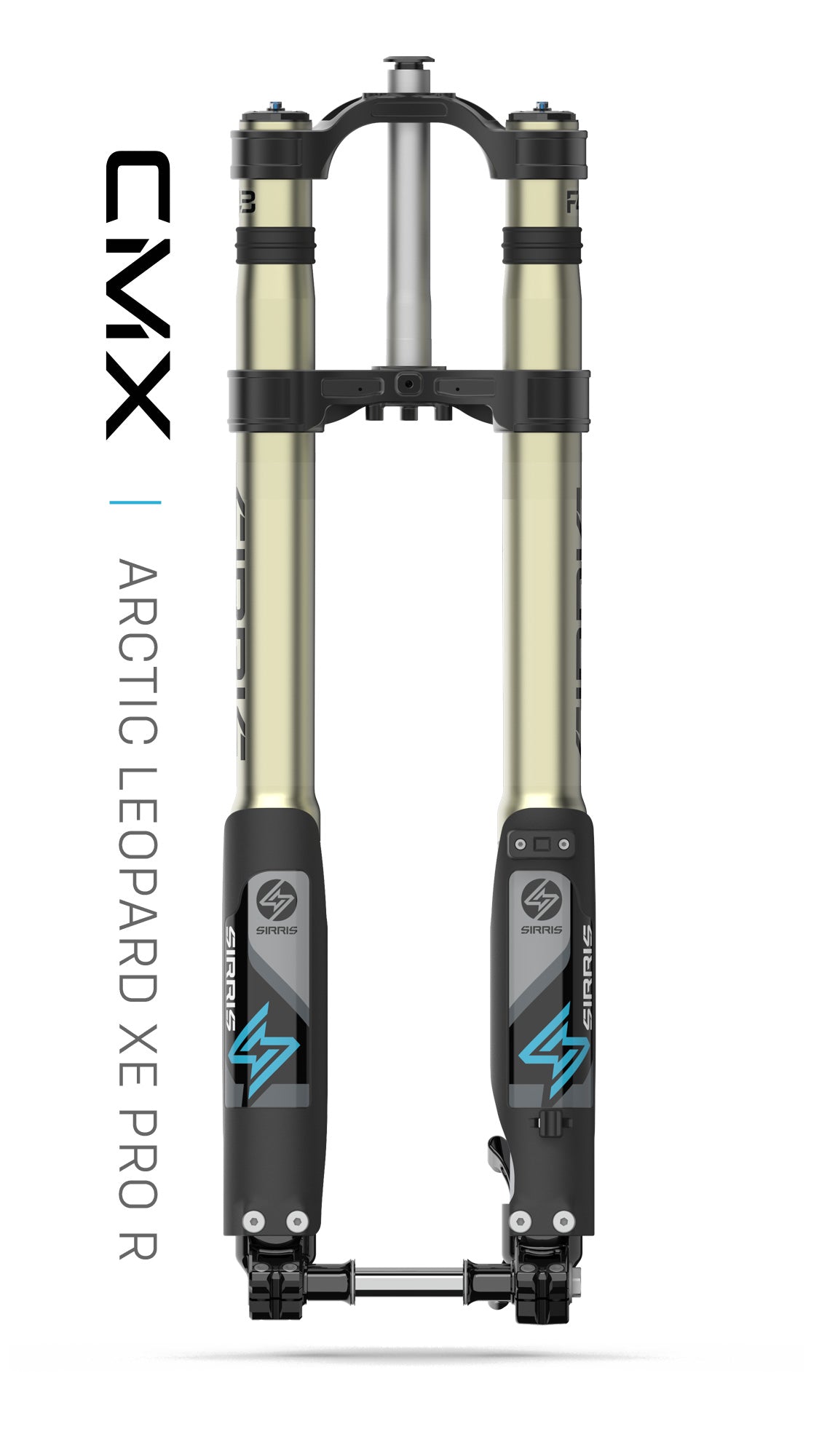

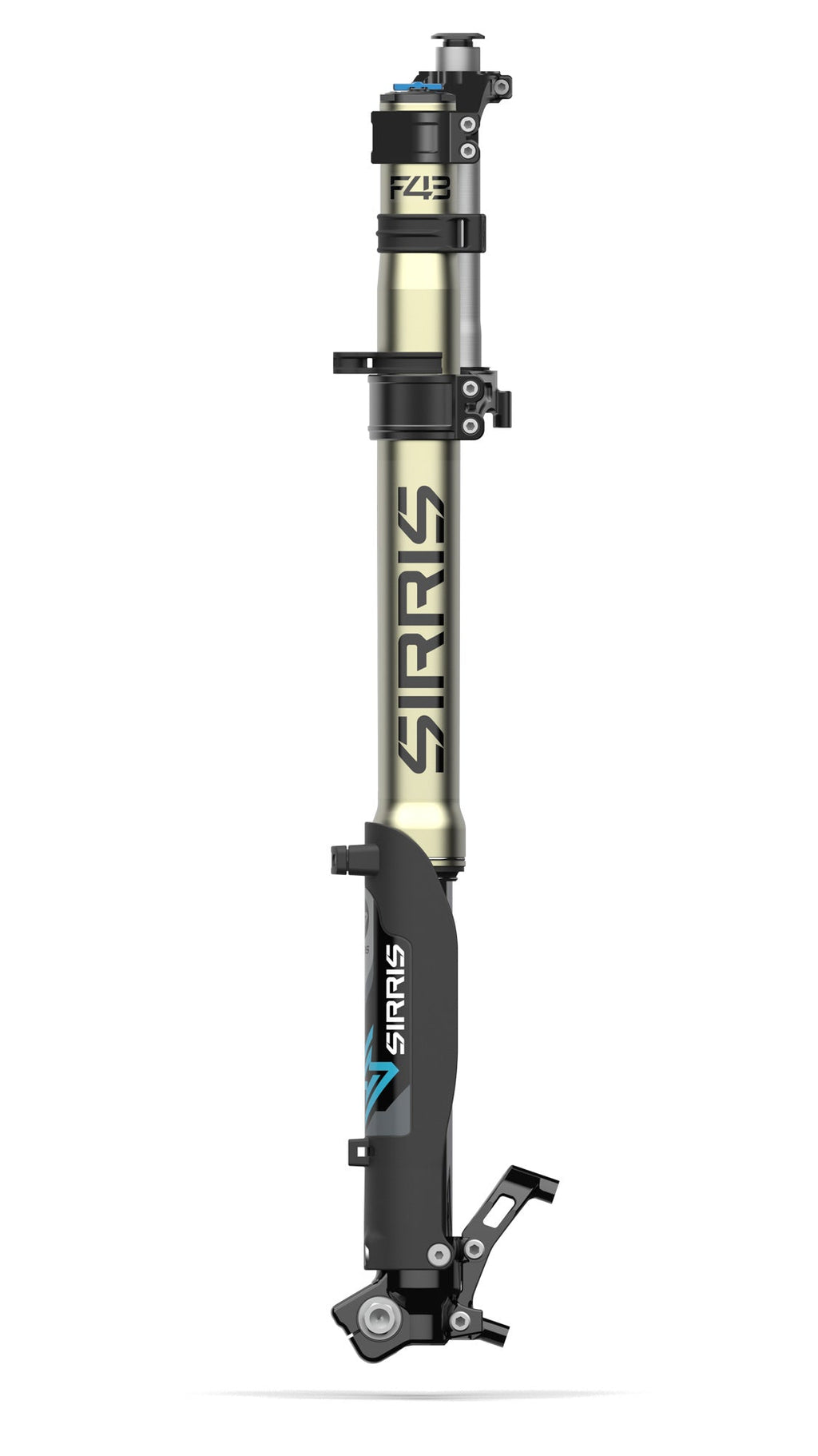

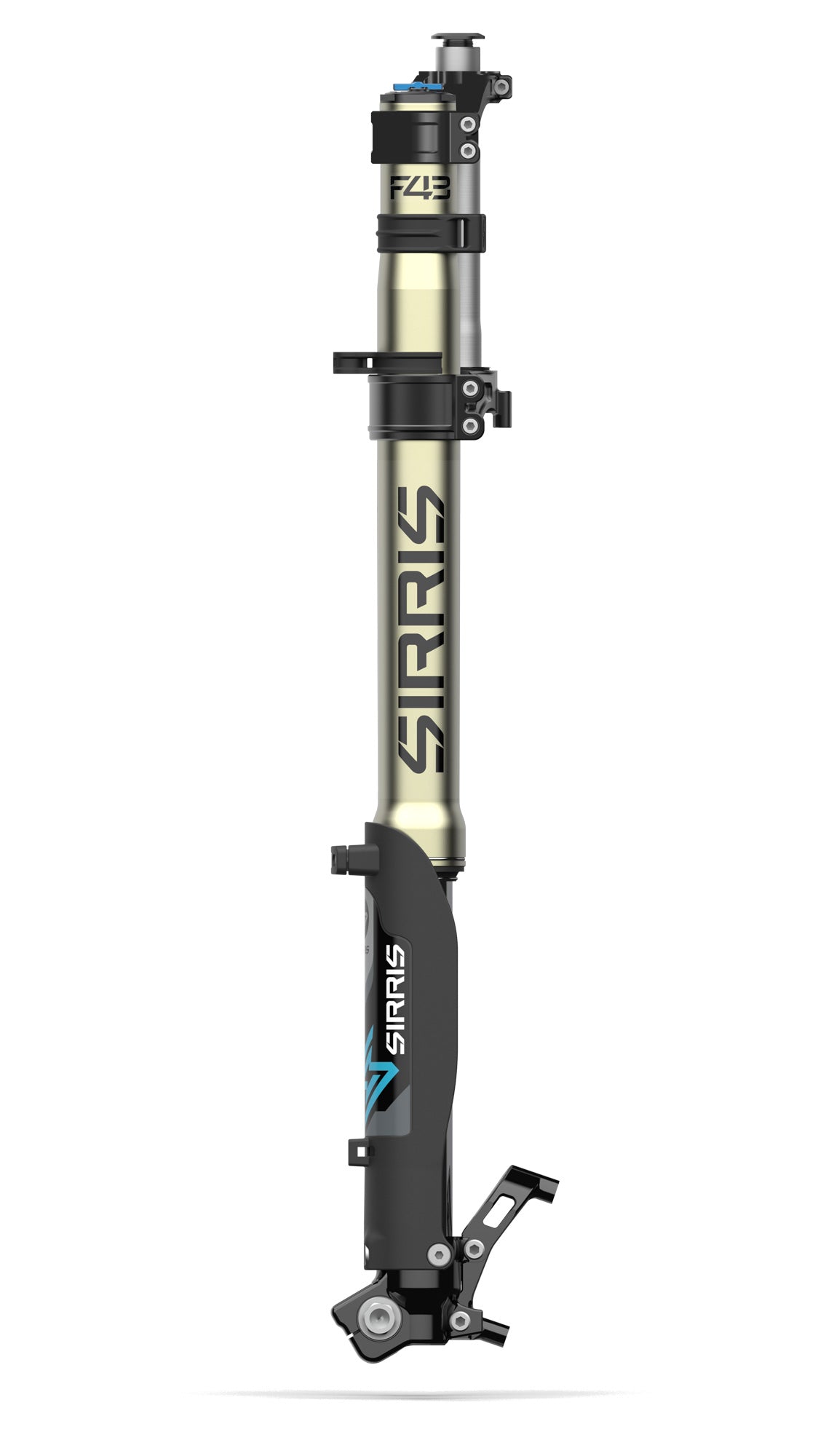

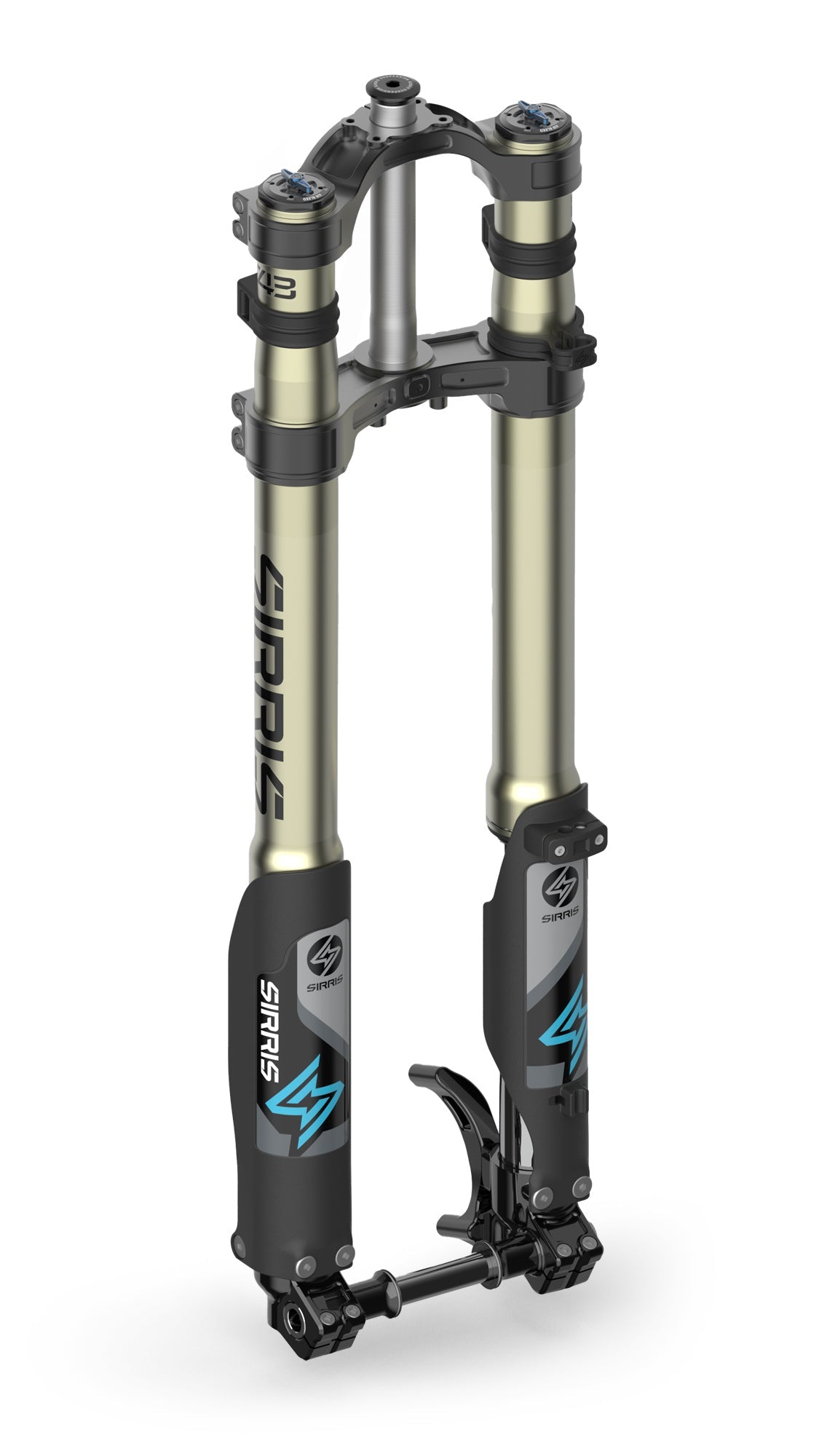

Sirris F43 CMX Fork for Arctic Leopard XE Pro R [220mm Travel]

Upgrade the Arctic Leopard XE Pro R with the Sirris F43 CMX Fork, a purpose built high-performance suspension setup designed for aggressive eMoto riding.

The F43 uses Sirris’ CMX Tune, or Compact Motocross Tune, with a symmetrical adjustable closed-cartridge damping system, high-flow pistons, fully tunable compression and rebound valving, and separate lubrication and damping oil circuits. The result is consistent, predictable suspension performance through hard trail riding, jumps, repeated impacts, and long riding sessions.

With 220mm of travel, 43mm high-tensile steel stanchions, a hydraulic bump stop, and an ultra-stiff race-grade axle, the F43 is built to provide increased front-end support, steering precision, and bottom-out control when pushing the Arctic Leopard XE Pro R harder.

The fork also features 178mm spacing for a wide range of dirt and street tire options, replaceable brake caliper mounting brackets, Arctic Leopard-specific wheel spacers, and a billet aluminum drop clamp.

We highly recommend pairing this fork with the R38 Shock and TMB Linkage.

Rider Weight Options:

• 140–180 lbs: Medium
• 180–220 lbs: Heavy

Please Note: Listed weight ranges are rider weight without riding gear. Sirris calculates approximately 15 lbs of riding gear into the recommended weight ranges.

Fork Specs:

• Architecture: Upside-down fork
• Travel: 220mm
• Free Length: 775mm
• Total Length With Drop Clamp: 800mm
• Fork Spacing: 178mm
• Fork Weight: 4 kg per leg
• Stanchions: 43mm high-tensile steel with hard chrome finish
• Outer Tubes: Seamless 7050 aluminum with Type III hard-anodized coating
• Dropouts: 6061 aluminum with Type II anodized coating
• Triple Clamps: Billet 6061 aluminum drop clamp with black Type II anodized coating
• Steer Tube: Seamless 7050 aluminum with Type II anodized coating
• Stem Mount: 4-bolt direct-mount stem only
• Seals: NOK MX seals
• Bushings: Daido MX bushings
• Guards: High-impact polypropylene with 210-degree wraparound coverage

Damping:

• Sirris CMX Tune — Compact Motocross Tune
• Symmetrical adjustable closed-cartridge design
• Spring-backed modified IFP
• High-flow pistons
• Fully tunable compression and rebound valving
• Separate lubrication and damping oil circuits
• Hydraulic bump stop for progressive bottom-out control
• External tool-free compression adjustment
• External rebound adjustment
• Rebound adjustment requires a tool

Brake Mounting:

• Designed for 240mm brake rotors
• 240mm rotor brake bracket included
• Replaceable caliper mounting brackets allow for future brake and wheel upgrades

Axle:

• Custom ultra-stiff race-grade axle
• Ultra-high-tensile hard-chromed construction
• Designed to improve steering precision and front-end confidence
• Arctic Leopard XE Pro R wheel spacers included

Fitment:

• Arctic Leopard XE Pro R
