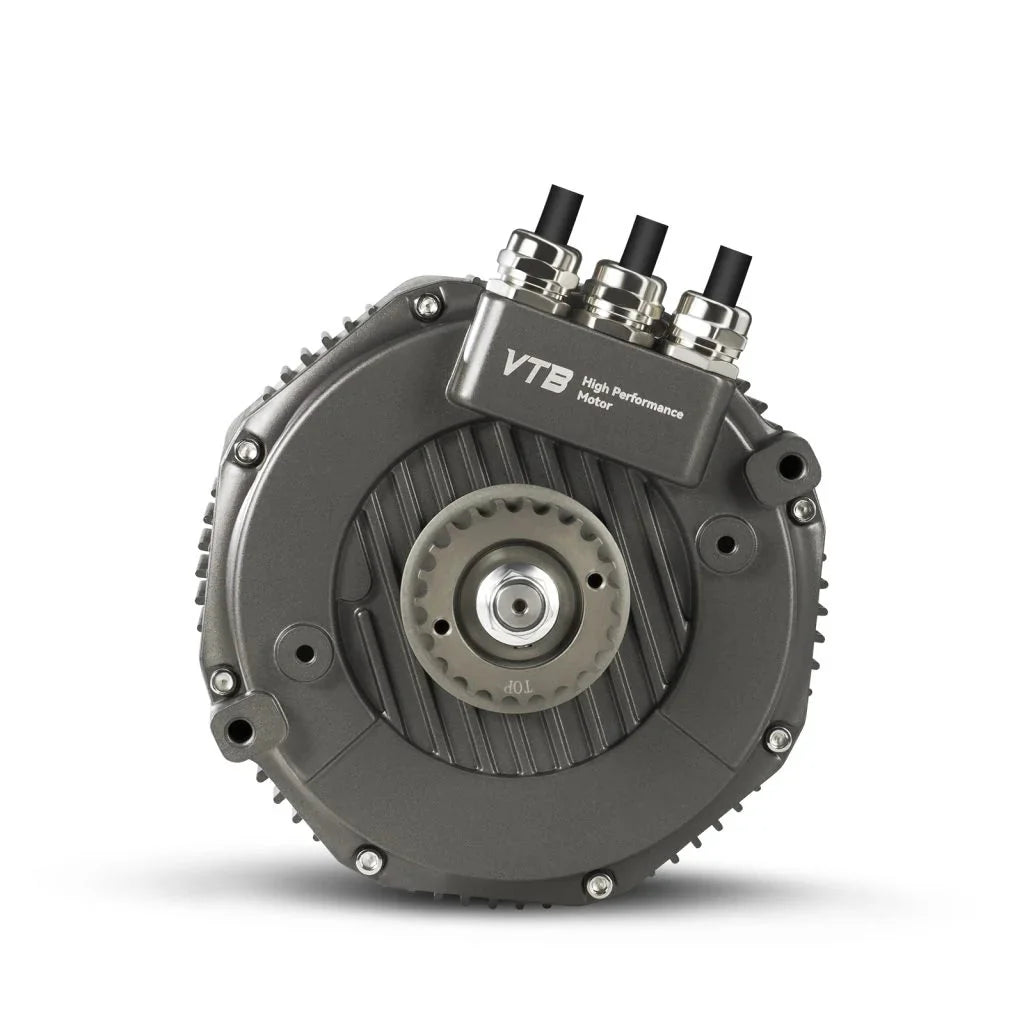

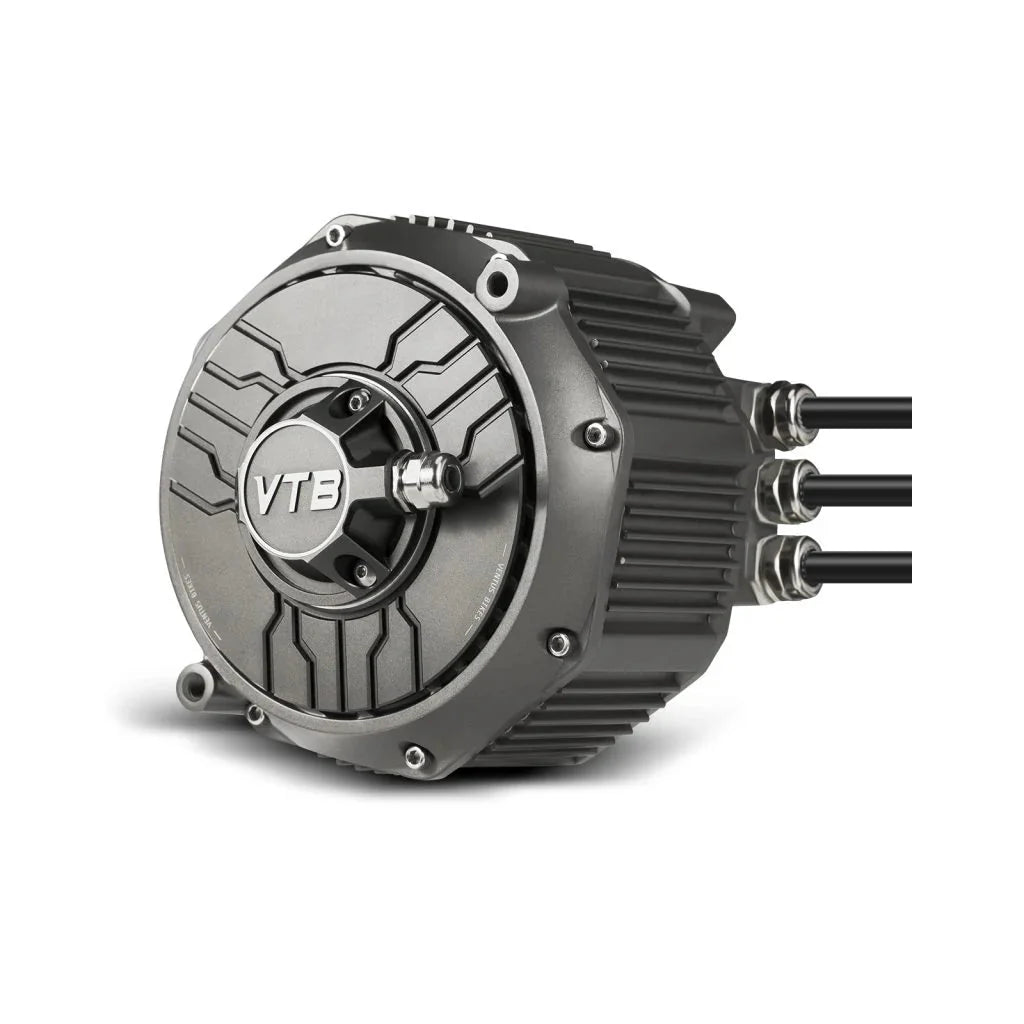

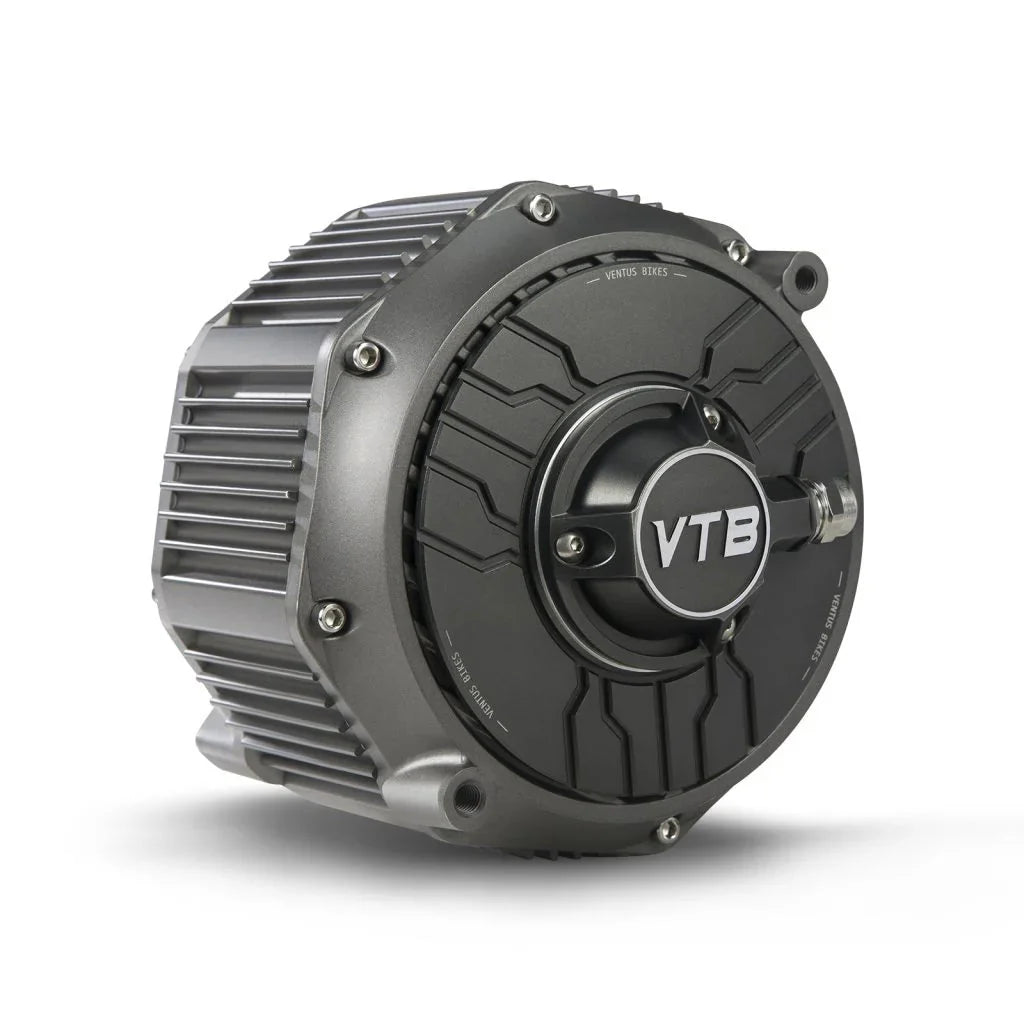

Ventus 28 kW Light Emoto Motor

The VTB Beast Motor is designed to push the performance limits of light electric dirt bikes. When paired with the VTB V9600 controller and a high-output battery, this system delivers up to 28kW of peak power and 62Nm of torque — transforming your ride into a serious off-road machine.

Whether you’re focused on torque, top-end power, or precision control, the VTB Beast Motor delivers smooth, responsive throttle and elite-level durability under extreme loads.

Key Features

• Peak Output: 28kW when paired with a VTB V9600 controller

• Max Torque: 62Nm

• Max Stable Rotor RPM: 9500 RPM

• Efficiency: ≥95% for maximum performance with minimal losses

• KV Value: 75KV

• Voltage Range: 48V–100V compatible

• Max Phase Current: 850A

• Waterproof Rating: IP67-rated against water and debris ingress

• Air Gap: 0.5mm rotor air gap increases torque output

• Shaft Material: High-strength 40CrMoTi Steel Alloy

• Rotor Type: Internal Permanent Magnet (IPM) for high power density

• Stator Construction: 130×180mm with premium high-magnetic-force laminations

• Stator Winding: Vacuum Pressure Impregnation (VPI) process for insulation and durability

• Bearings: Sealed high-performance bearings for shock resistance and longevity

• Motor Temperature Limits:

  • 130°C: Start limiting

  • 150°C: Power cut for protection

• Weight: 10.9 kg

• Color: Iron Gray

• Number of Pole Pairs: 5

• Phase Wire Terminal: SC35-6

Encoder & Sensor System

• Sensing Method: ABZ+PWM encoder with 1024 pulses and 240Hz output frequency
• Temperature Sensor: NTC 10k thermistor
• Sensor Connector: Nylon M12 circular connector for V9600 compatibility, and 8-pin square terminal for broader controller integration
• Connector Notes: The motor is built with circular connectors (via IMD molding) for optimal waterproofing and ease of use with other VTB products. Square connectors are available for standalone use but are less waterproof.

Encoder vs Hall Sensor Performance

Unlike traditional hall sensors that suffer from slow throttle feedback and reduced precision, the VTB Beast Motor uses encoders to deliver accurate rotor position tracking at all speeds. This translates to smoother throttle response, more consistent power delivery, and greater control — especially in traction-challenged terrain or when stunt riding. Riders seeking maximum feel, precision, and power management will benefit from the encoder system chosen by VTB.

Recommended Pairing

This motor is best paired with the VTB V9600 controller and a high-output battery (not included) to achieve full performance.

Fitment:

• Surron Light Bee
• Talaria XXX
• Eride Pro SS, 2.0, & 3.0
• 79 Bike Falcon M, Pro, & GT.
• Rerode R1, & R1+
