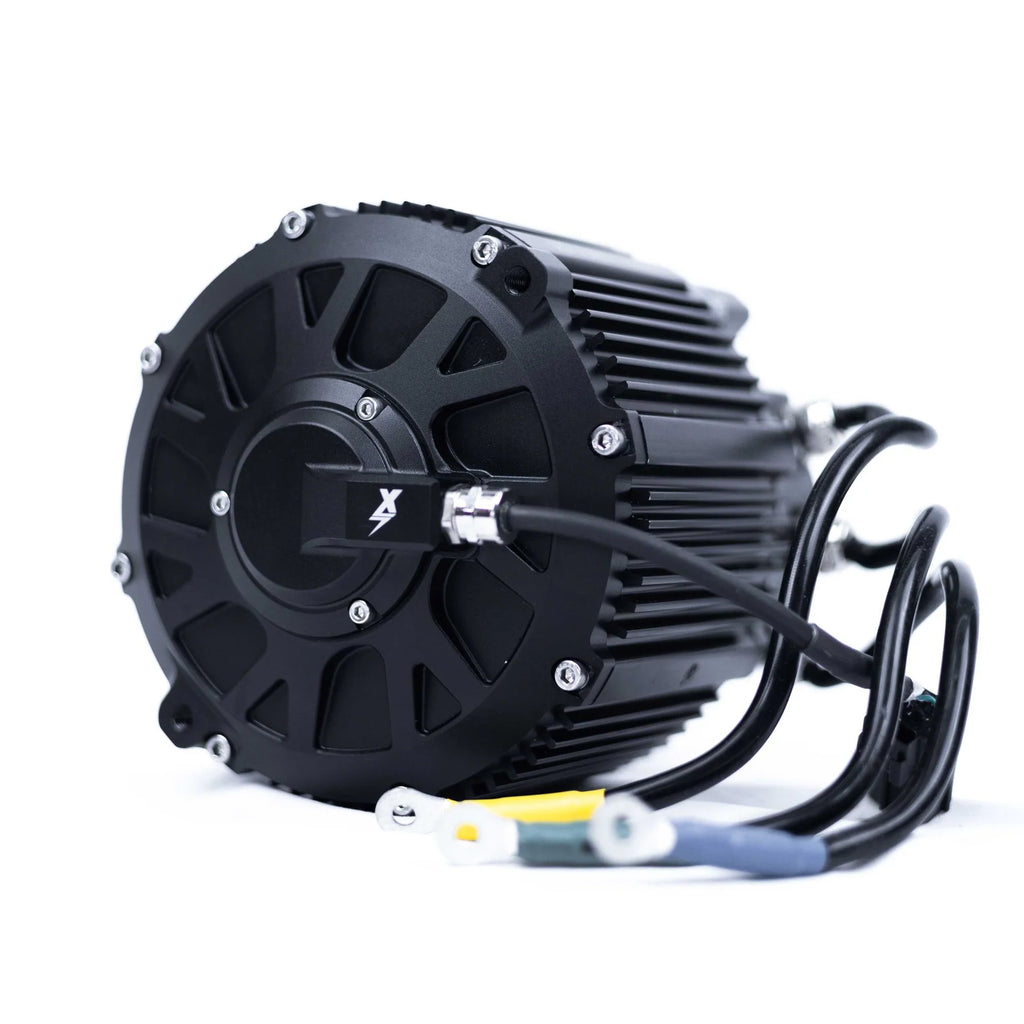

EBMX XLB-60 RACE Motor Kit

The EBMX XLB-60 Race Motor is engineered from the ground up to outperform anything else in its class. Built to handle extreme heat and sustained power output, this motor is the go-to choice for aggressive off-road riders, racers, and anyone demanding the highest level of performance.

Whether you're hammering laps on a track, charging hard through singletrack, or lighting up your favorite trail, the XLB-60 is designed to keep cool, stay smooth, and rip harder than anything else out there.

Battery Upgrade REQUIRED: A high-output battery is mandatory to run the XLB-60 motor on any of the bikes. Do not run this motor with a stock battery setup.

Note: This XLB Race Motor Kit is designed specifically for the V3 EBMX X-9000 Controller. (Please contact us if you need the V2 Controller Kit.)

Key Features

• Rated to 35KW Peak Output: Tested and proven under real-world race conditions

• 180°C-Rated Windings: Designed to run cooler and longer than stock

• U42H Magnets: Premium grade materials for sustained magnetic performance

• Custom IPM Rotor Design: Built to maintain performance under extreme load

• 1mm Rotor Air Gap: Industry-leading tight tolerance for peak motor efficiency

• 13000RPM Rated Motor Speed: Delivers insane top-end for extended pulls

• Encoder-Based Control: Precise rotor position tracking for smooth, predictable torque delivery

• Compatible With EBMX X-9000 Controller: Pre-tuned for plug-and-play performance

Includes: EBMX Custom Bash Plate (included with motor)

Why Encoders Matter (vs Hall Sensors)

Unlike many competitors using basic hall sensors, the XLB-60 uses encoder sensors to provide more reliable, real-time rotor position data at all speeds. Here's why that matters:

• Increased Accuracy: Encoders deliver precise rotor angle data at all times, unlike hall sensors which estimate position after ~2000 RPM.

• Better Low-End Torque: More consistent data improves torque control when launching or crawling.

• Eliminates Current Spikes: Prevents erratic behavior during sudden decel or throttle changes — a common problem with hall sensor setups.

• Improved Controller Protection: Reduces likelihood of controller trips or power cutouts under extreme riding loads.

• Smoother, More Predictable Powerband: Perfect for technical terrain or competitive riding.

Note: Although this motor is optimized for the EBMX X-9000 controller, it can be used with other controllers — but custom tuning will likely be required.

Safety Disclaimer (PLEASE READ)

This is an extremely powerful motor system that requires respect and caution. Failure to follow proper safety protocols may result in serious injury or damage.

IMPORTANT SAFETY NOTES:

• NOT FOR STREET USE: Strictly off-road only. Never ride on public roads or in populated areas.

• FOR EXPERIENCED RIDERS ONLY: Not recommended for beginners or casual users.

• USE WITH CAUTION: Extreme power means extreme risk. Ride responsibly.

• UPGRADE YOUR BRAKES: Do not use with stock braking systems. Proper safety upgrades are essential.

• KNOW YOUR LAWS: Use only in legal off-road areas or private tracks.

• KEEP OUT OF REACH OF CHILDREN: These are not toys.

• DO NOT RIDE IMPAIRED: Always ride in a safe and alert state.

By purchasing or using this product, you agree that you understand the inherent risks of high-speed electric motor systems. EBMX and ECR are not liable for injuries, damages, or accidents resulting from improper setup, unsafe riding, or misuse.

Recommended Settings

Recommended Gearing

Off-Road:

• 18" Rear Wheel: 58T – 64T (72V system = 75 MPH top speed on 64T)

• 16" Rear Wheel: 54T – 58T

• 17" Rear Wheel: 56T – 60T

Recommended X-9000 Controller Settings

(Assuming 20S / 22S battery with 400A BMS)

• 1000A Phase / 30KW Output

• 900A Phase / 25KW Output

• 800A Phase / 20KW Output

Want more range?

Turn Field Weakening to 0%.

With a 64T sprocket on 21/18 wheels and a 72V battery, you can still hit ~65 MPH while extending your range by up to 15%.

Real-World Testing Results

• Rider Weight: 85kg

• Bike Weight: 75kg (EBMX-built Surron)

• Setup: 64T rear sprocket, 1000 Phase Amps, 500 DC Amps

• Battery Configs:

  • 20S / 72V Race Pack: Peak Power = 32–34KW

  • 22S / 81V Race Pack: Peak Power = 36–38KW

Note: Results will vary based on rider weight, terrain, gearing, and battery output.

Fitment

• Surron Light Bee X
• E-Ride Pro SS 2.0
• Talaria XXX
• Talaria XXX Pro

Battery Upgrade REQUIRED:
A high-output battery is mandatory to run the XLB-60 motor on any of the above bikes. Do not run this motor with a stock battery setup.
